Comprehensive Analysis of Steel Coil Handling and Transport Systems

I. Introduction

• Purpose: This report provides a comprehensive analysis of the systems, equipment, and methodologies employed for handling and transporting steel coils within industrial environments. It examines the entire process, from initial lifting and internal movement to external logistics, packaging, and storage, addressing critical aspects such as operational efficiency, safety, damage prevention, technological advancements, and relevant industry standards.
• Scope: The analysis encompasses the diverse range of equipment and systems specifically designed for steel coils, covering operations within steel mills, processing centers, warehouses, and during transit via road, rail, and sea. Both internal facility logistics (intralogistics) and external transportation are addressed.
• Importance: Steel coils, representing significant value and often substantial weight (ranging from a few tons to over 50 tons), are fundamental commodities in numerous manufacturing supply chains.¹ The methods used to handle and transport these coils directly impact operational efficiency, production throughput, overall costs, product quality, and, critically, worker safety.² Improper handling can lead to costly product damage, equipment failure, production delays, and severe or fatal injuries.³ Therefore, understanding and optimizing these systems is paramount for any operation involved in the steel supply chain.
• Structure Overview: This report begins by defining the fundamental functions and components of steel coil handling systems. It then delves into the specialized equipment used for lifting and gripping coils, followed by an examination of internal and external transport methods. Subsequent sections address critical safety procedures and regulations, techniques for preventing coil damage, and recent technological advancements. Finally, the report provides a comparative analysis of different systems based on key performance criteria and concludes with overarching recommendations.


II. Fundamental Functions and System Components

The effective management of steel coils relies on integrated systems designed to perform several primary functions using a range of core components. The design and selection of these systems are heavily influenced by the specific characteristics of the coils and the operational environment.

A. Primary Functions:

• Lifting and Lowering: This involves the vertical movement of coils, essential for tasks such as loading and unloading transport vehicles (trucks, railcars, ships), stacking coils in storage areas, retrieving them for processing, and positioning them onto machinery like uncoilers or processing lines.¹


• Horizontal Transport: Moving coils across distances is fundamental. This includes internal movement within a facility, such as transferring coils between different processing bays, moving them from storage to production lines, or transporting them to shipping areas.⁴ It also encompasses external logistics, moving coils between facilities or to end-users via various transport modes.³

• Storage and Retrieval: Coils require dedicated storage solutions. This function involves placing coils into designated areas – which can range from simple floor storage with dunnage to specialized coil racks or sophisticated automated high-bay warehouses – and efficiently retrieving them when needed.⁴

• Positioning and Orientation: Precise placement is often required, whether loading a coil onto a machine mandrel, positioning it within a transport cradle, or aligning it for a specific process.¹ This function also includes changing the coil’s orientation, such as tilting it from "eye to side" (horizontal axis) to "eye to sky" (vertical axis) using upenders or down-enders.⁴

• Compacting and Packaging: Before storage or shipment, coils, particularly those like wire rod, often undergo compacting to create a dense, stable package. Subsequently, protective packaging (wrapping, strapping) is applied to prevent damage and corrosion during handling and transit.²


  B. Core System Components:

• Lifting Devices: These are the interfaces that directly engage with the coil for lifting. Common examples include C-hooks, various types of coil grabs and tongs, lifting magnets, and specialized attachments for forklifts like coil rams.¹

• Transport Mechanisms: These systems facilitate the horizontal movement of coils. They range from overhead solutions like bridge cranes and gantry cranes to floor-based systems such as conveyors, Automated Guided Vehicles (AGVs), coil shuttles, transporters, and external transport vehicles like specialized trucks and railcars.¹


• Storage Solutions: Infrastructure designed specifically for holding coils safely and efficiently includes custom coil racks with anti-tip features, specialized pallets or cradles, and automated storage and retrieval systems (AS/RS) often integrated with high-bay warehousing.⁴


• Control Systems: These manage the operation of the handling and transport equipment. They range from manual controls (pendants, cabin controls) to semi-automated systems and fully automated solutions utilizing Programmable Logic Controllers (PLCs), Warehouse Management Systems (WMS), and networks of sensors to coordinate complex movements and integrate with plant-wide production planning.²

• Safety Systems: Integral components designed to prevent accidents and protect personnel and equipment. Examples include overload protection, anti-sway systems on cranes, emergency stop mechanisms, physical guarding on machinery, collision avoidance sensors on AGVs and cranes, and load stability features.¹

C. Key Considerations in System Design:

• Coil Characteristics: The physical properties of the coils are paramount. This includes their weight (which dictates equipment capacity), dimensions (width, inner/outer diameter influencing grab/hook design and storage density), material type (e.g., hot-rolled, cold-rolled, galvanized, stainless steel affecting handling sensitivity), and surface condition (risk of scratching or damage).¹
• Facility Layout: The physical constraints of the operating environment heavily influence system choice. Factors include available floor space, ceiling height (headroom for cranes), existing building structures, the required flow path between different operational areas (storage, processing, shipping), and whether operations occur indoors or outdoors.⁵
• Throughput Requirements: The volume of coils to be handled per unit time dictates the necessary speed and capacity of the system. High production rates demand efficient, often automated, systems with short cycle times.²
• Safety and Ergonomics: Ensuring worker safety is a primary driver. System design must minimize hazardous manual handling, incorporate safety features, facilitate ergonomic operation, and comply with relevant safety regulations.⁶
• Cost: Economic factors play a significant role. This includes the initial capital investment for equipment and installation, as well as ongoing operating expenses such as energy consumption, labor, and maintenance.³

The effective handling of steel coils necessitates more than just individual pieces of equipment; it requires an integrated system where lifting devices, transport mechanisms, storage solutions, control systems, and safety protocols work in concert.² The overall performance hinges on the seamless interaction of these parts. For instance, a sophisticated automated crane system relies on integration with a WMS for efficient task allocation and inventory management.⁷ A breakdown in one component, like a primary crane, can halt significant portions of the production flow unless redundancies, such as AGVs capable of alternative routing, are incorporated.⁸

Furthermore, the specific physical properties of the steel coils and the constraints of the operating environment fundamentally dictate the optimal system configuration.¹ Coil weight determines crane capacity ¹; coil width influences the choice between a standard C-hook and a telescopic grab ⁹; surface sensitivity might favor non-contact magnetic lifters ¹; limited aisle space could preclude C-hooks and favor grabs or AGVs ⁵; outdoor operations might necessitate gantry cranes.¹⁰ This inherent link between the load, the environment, and the handling technology means that system design must be tailored to the specific application; a universal "best" solution does not exist.

III. Specialized Lifting and Gripping Equipment

A variety of specialized below-the-hook devices and forklift attachments are employed to lift and manipulate steel coils, each with distinct designs, capabilities, and operational considerations. The choice often involves balancing factors like cost, efficiency, space utilization, and the need to protect the coil surface.

A. C-Hooks:

• Design and Operation: C-hooks are among the most common and straightforward devices for handling coils positioned with their axis horizontal ("eye to the side"). Their simple, robust C-shape features a lower lifting arm that is inserted through the coil’s inner diameter (ID).¹ They are engineered to be counterbalanced, ensuring they hang level whether empty or carrying a load, which aids operator control.¹¹ Standard features often include guide handles for easier positioning by personnel on the ground and curved lifting surfaces (saddles) or protective padding (e.g., urethane bumpers) on the lifting arm to minimize contact stress and prevent damage to the inner wraps of the coil.¹² Design refinements include integral (non-welded) lift loops for reduced maintenance and height, and radii in corners to lessen stress concentrations.¹⁰
• Variations: Several C-hook variations cater to specific needs:
  • Standard/Heavy Duty: Designed for general purpose and large, heavy coils.¹²
  • Narrow Coil / Slit Coil: Feature longer, thinner lifting arms to handle narrow width coils or multiple slit coils simultaneously.⁹
  • Close Stacking: Incorporate a recessed counterweight, allowing coils to be stored closer together, maximizing floor space utilization.⁹
  • Pivoting: Equipped with mechanisms (like a pivoting wedge) to allow for the upending or down-ending of coils (horizontal to vertical or vice versa).⁹
• Applications: Widely used in steel mills, processing centers, and warehouses for loading/unloading processing lines (e.g., uncoilers), transport vehicles, and placing coils into storage.¹¹ They are well-suited for handling heavy coils.¹¹
• Pros and Cons: The primary advantages of C-hooks are their structural simplicity, inherent robustness, relatively low maintenance requirements due to the absence of moving parts, and comparative ease of operation for trained personnel.⁵ They generally offer high lifting capacities.¹¹ However, their main drawback is the significant horizontal clearance required to maneuver the lifting arm into the coil’s ID, making them challenging to use in facilities with narrow aisles or tightly packed storage areas.⁵ They are also primarily designed for handling coils in the horizontal ("eye to side") orientation.¹¹

B. Coil Lifters / Grabs / Tongs:

• Design and Operation: This category encompasses devices, often with two opposing arms or pads, that grip the coil either by its outer diameter (OD) or inner diameter (ID).¹ Many feature adjustable arms to accommodate a range of coil widths, enhancing versatility.⁵ Operation can be purely mechanical, or utilize motorized drives (for leg movement or bail rotation) or hydraulic actuation.⁹


• Types:

  • Two-Arm Grabs/Tongs (Horizontal): These typically grip the coil’s OD and are efficient for handling coils of varying sizes.¹ Motorized versions enhance handling efficiency.⁹
  • Telescopic Coil Lifters: Feature legs that telescope in or out to match the coil width, often gripping the coil ID from both sides.⁹ They are frequently employed in warehouses and processing facilities where space is limited.⁵
  • Vertical "Eye" Coil Grab: Specifically designed to lift coils that are stored or stacked with their axis vertical ("eye to sky"), gripping the coil ID.⁹

• Applications: Commonly found in warehouses, distribution centers, and processing facilities.¹¹ Their design often makes them more suitable than C-hooks for stacking coils vertically or operating in areas with limited side clearance.⁵ Depending on the specific design, they can handle coils in either vertical or horizontal orientations.¹¹

• Pros and Cons: Coil lifters offer significant advantages in space efficiency, requiring less side clearance than C-hooks, which allows for denser storage.⁵ Their adjustability makes them versatile for handling coils of different widths.⁵ Vertical grabs are essential for "eye to sky" handling.⁹ However, they are mechanically more complex than C-hooks, involving moving parts that necessitate more maintenance.⁵ Headroom requirements can also be a constraint, particularly for grabs operating indoors.⁵ While capable of handling heavy loads, their maximum capacity might be less than that of the largest heavy-duty C-hooks.¹¹


  C. Lifting Magnets:

• Technology and Operation: Magnetic lifters utilize powerful magnetic fields to lift and transport steel coils without direct mechanical contact.¹ Electro-permanent magnet (EPM) technology is frequently used. EPM lifters require only a brief pulse of electricity to magnetize (MAG phase) the internal permanent magnets to grip the load, and another pulse (often reversed polarity) to demagnetize (DEMAG phase) and release it. Crucially, once magnetized, they hold the load securely using the permanent magnet field, consuming no power during the lift itself.¹³ This inherent property provides a major safety advantage: the load remains held even if electrical power is lost during transport.¹³

• Applications: Ideal for handling coils made of ferromagnetic materials, especially where surface damage from mechanical gripping is a concern (e.g., coated or painted coils).¹ They excel in applications with very limited space, such as loading coils tightly side-by-side onto trucks or railcars, where the physical dimensions of C-hooks or grabs would prevent access.¹³ Magnets can be designed to handle coils in both "eye to sky" and "eye to side" orientations.¹³

• Pros and Cons: The primary benefits of magnetic lifters are significantly reduced risk of mechanical damage to the coil surface due to non-contact handling, enhanced safety due to the secure hold during power outages (with EPMs), and energy efficiency during the lift phase.¹ Their ability to operate in confined spaces is also a key advantage.¹³ However, magnetic lifters represent a substantially higher capital investment compared to C-hooks or mechanical grabs, with costs potentially reaching hundreds of thousands of dollars.¹¹ They also require a significant electrical supply for the magnetization and demagnetization cycles ¹¹ and are only suitable for lifting materials that are sufficiently magnetic.

D. Specialized Forklift Attachments:

• Coil Rams / Booms: These are the most common forklift attachments specifically for coils. They consist of a sturdy, pole-like ram, typically shorter and of larger diameter than carpet poles, designed to be inserted into the coil’s ID.¹⁴ They allow a standard forklift to lift and transport coils horizontally ("eye to side"). These attachments are available in two main mounting styles: fork-mounted (sliding onto the existing forks) and carriage-mounted (replacing the forks and attaching directly to the forklift carriage).¹⁵ Capacities vary widely depending on the model and ram diameter, commonly ranging from 3,000 lbs to 15,000 lbs or more.¹⁶

• Fork Clamps: Some clamp attachments, like the J-Series Fork Clamp, function as both a clamp and a fork positioner.¹⁴ While primarily designed for awkward loads like crates or bales, they might have niche applications for gripping certain types of smaller coils or related materials securely between the forks.
• Other Attachments: While not coil-specific, other heavy-duty forklift attachments found in metal processing environments, such as Fork Positioners (allowing hydraulic adjustment of fork spacing) ¹⁴ and High Capacity Forks ¹⁴, play supporting roles in handling pallets, skids, or other items associated with coil transport and storage.

The selection process for a lifting device clearly involves navigating critical trade-offs. C-hooks represent the simplest and often lowest-cost option, ideal for heavy-duty, straightforward horizontal lifting where space permits.⁵ Coil grabs and lifters offer greater versatility for handling varied sizes and vertical orientations, particularly excelling in space-constrained environments, but at the cost of increased complexity and maintenance.⁵ Magnetic lifters provide the best protection against surface damage and offer superior safety against load drops due to power loss, making them suitable for high-value, sensitive coils or extremely tight handling situations, but their high capital cost and energy requirements for switching limit their application.¹³

Forklift attachments, primarily coil rams, offer a mobile and flexible handling solution, particularly valuable in facilities without comprehensive crane coverage or for specific tasks like loading trucks or feeding certain machines from ground level.⁴ They leverage the existing mobility of forklifts but are generally limited to lower capacities compared to dedicated overhead crane systems.¹

Across all device types, the emphasis on preventing coil damage is evident. Features like protective padding on C-hooks ¹², non-contact magnetic lifting ¹, and cushioned mandrel sleeves for processing equipment ¹⁷ all point to the economic importance of preserving the coil’s surface and edge integrity throughout the handling process.¹¹

Table 1: Comparison of Steel Coil Lifting Devices

Device Type	Typical Coil Orientation Handled	Typical Capacity Range	Key Advantages	Key Disadvantages/Limitations	Relative Cost	Space Requirements
C-Hook	Horizontal ID ("Eye to Side")	5 – 50+ tons	Simple design, low maintenance, high capacity, relatively easy to operate	Requires wide aisle/side clearance, primarily for horizontal handling	Low-Med	High side clearance
Coil Grab/Tong	Horizontal OD/ID, Vertical OD/ID	5 – 40+ tons	Versatile (size/orientation), space-efficient (less side clearance), good for stacking	More complex, higher maintenance, potential headroom limits	Med-High	Low side clearance, Headroom
Vertical Grab	Vertical ID ("Eye to Sky")	2.5 – 20+ tons	Essential for vertical handling/stacking, space-efficient	Specific orientation only, complex mechanism	Med-High	Low side clearance, Headroom
Magnetic Lifter	Both Horizontal & Vertical	5 – 35+ tons	Minimal damage risk, high safety (EPM), energy efficient (lift), tight spaces	High capital cost, requires power (switching), only for magnetic materials	High	Minimal (non-contact)
Forklift Ram/Boom	Horizontal ID ("Eye to Side")	1.5 – 7.5+ tons	Mobile, flexible (uses forklift), lower cost than crane system	Lower capacity than cranes, requires forklift availability/suitability	Low (attachment)	Forklift operating space

Note: Capacity ranges are indicative and can vary significantly based on specific model and manufacturer. Relative cost refers to the lifting device itself.

IV. Internal Facility Transport Systems

Once lifted, steel coils require efficient and safe transport within the facility. Various systems are employed, ranging from traditional overhead cranes to highly automated floor-based solutions, often used in combination to optimize material flow.

A. Overhead and Gantry Cranes:

• Role and Types: Overhead bridge cranes (both single and double girder designs) are the predominant technology for heavy lifting and transport of coils within the enclosed bays of steel mills, processing plants, and warehouses.¹ Gantry cranes, which run on rails at ground level, serve a similar function but are frequently utilized in outdoor storage yards or areas where overhead runway structures are impractical.¹⁰ These cranes are the workhorses responsible for loading/unloading transport, feeding production lines, and moving coils into and out of storage.

• Key Features and Components: Designed for demanding industrial environments, these cranes feature high lifting capacities, often ranging from 10 to 50 tons or more, specifically engineered for heavy coils.¹ Precision is crucial; modern cranes incorporate variable speed drives for smooth acceleration and deceleration, minimizing load sway, and specialized trolley designs for accurate positioning.¹ Advanced load stability systems further enhance control.¹ Key components include the main horizontal girder(s), the hoist mechanism (responsible for lifting), end trucks containing the wheels for runway travel, and the electrical power and control systems, which may be operated from a cabin or via radio remote control.¹⁸ For operation in hot mill environments, components like electrical systems are often heat-shielded to ensure reliability and longevity.¹⁰

• Smart/Automated Cranes: Automation is a significant trend. Smart cranes utilize PLC control for highly precise automated movements, achieving positioning accuracies within ±10mm to ±25mm.¹⁹ Sophisticated anti-sway control systems actively dampen load swing, maintaining stability within ±0.4 degrees during high-speed travel.¹⁹ Fully automated cranes can execute complex tasks based on input from a Warehouse Management System (WMS), including automated storage and retrieval in high-bay warehouses, path planning, and collision avoidance between multiple cranes operating in the same bay.¹⁹ These systems can achieve high travel speeds (up to 150 m/min) and are designed for high duty cycles (up to 8 million cycles), enabling continuous 24/7 operation and maximizing throughput.²⁰

• Integration: Overhead and gantry cranes work in conjunction with the various lifting devices discussed previously (C-hooks, grabs, magnets) selected based on the specific handling requirements.¹


  B. Conveyor Systems:

• Types and Applications: Conveyors provide continuous, automated transport along fixed paths. Types used in coil handling include roller conveyors, heavy-duty chain conveyors, and pallet conveyors.²¹ They are commonly employed to move coils (often on pallets or specialized carriers) sequentially through different processing stages, such as cooling tunnels, inspection stations, trimming lines, and automated compacting and packaging lines.²

• Vertical Pallet Systems: A specialized conveyor system utilizes vertical stem pallets to support coils ("eye to sky"). These pallets move along floor-level roller modules, with turntables enabling changes in direction and elevators potentially facilitating vertical transitions. These systems are often integrated directly with vertical coil compactors and strapping/binding units, providing a streamlined flow from processing to final packaging.²

C. Automated Guided Vehicles (AGVs):

• Role and Flexibility: AGVs represent a highly flexible approach to internal transport, moving materials along programmed paths without fixed infrastructure like rails or conveyor lines.²¹ They are increasingly used in the steel and metal industries for transporting heavy loads like steel coils, dies, sheet stacks, and finished goods between storage, processing, and shipping areas.⁷
• Types and Capacity: AGV configurations for heavy loads include burden carriers, platform trucks, and specialized coil handlers, sometimes equipped with lifting or gripping capabilities.²² Capacities can be substantial, with AGVs designed specifically for steel coils capable of handling payloads up to 100 tons.²²
• Navigation: Various navigation technologies are employed. Older systems might use buried guide wires or magnetic tape on the floor.⁸ Modern AGVs increasingly utilize laser guidance (triangulating off fixed reflectors) or natural feature navigation methods like SLAM (Simultaneous Localization and Mapping), which uses onboard sensors (like lasers) to map the environment and determine the vehicle’s location within it.²³ Laser and SLAM navigation offer greater flexibility, as routes can be easily modified via software without physical changes to the floor.²³
• Advantages: AGVs offer significant benefits: continuous 24/7 operation increases productivity ²¹; automation enhances safety by removing human operators from potentially hazardous transport tasks ²¹; labor costs can be reduced ²⁴; routing is highly flexible and adaptable to changing needs or temporary obstructions ²¹; precise positioning capabilities ensure accurate delivery ⁸; omnidirectional movement capabilities allow operation in tight spaces ²²; and a fleet of AGVs can provide redundancy, ensuring continued operation even if one unit requires maintenance, unlike a single point of failure in a fixed system.⁸
• Integration: AGVs can be integrated with higher-level control systems like WMS or Manufacturing Execution Systems (MES), allowing for fully automated task assignment, dispatching, and real-time tracking of material movements and inventory.²³

D. Other Floor-Based Transport:

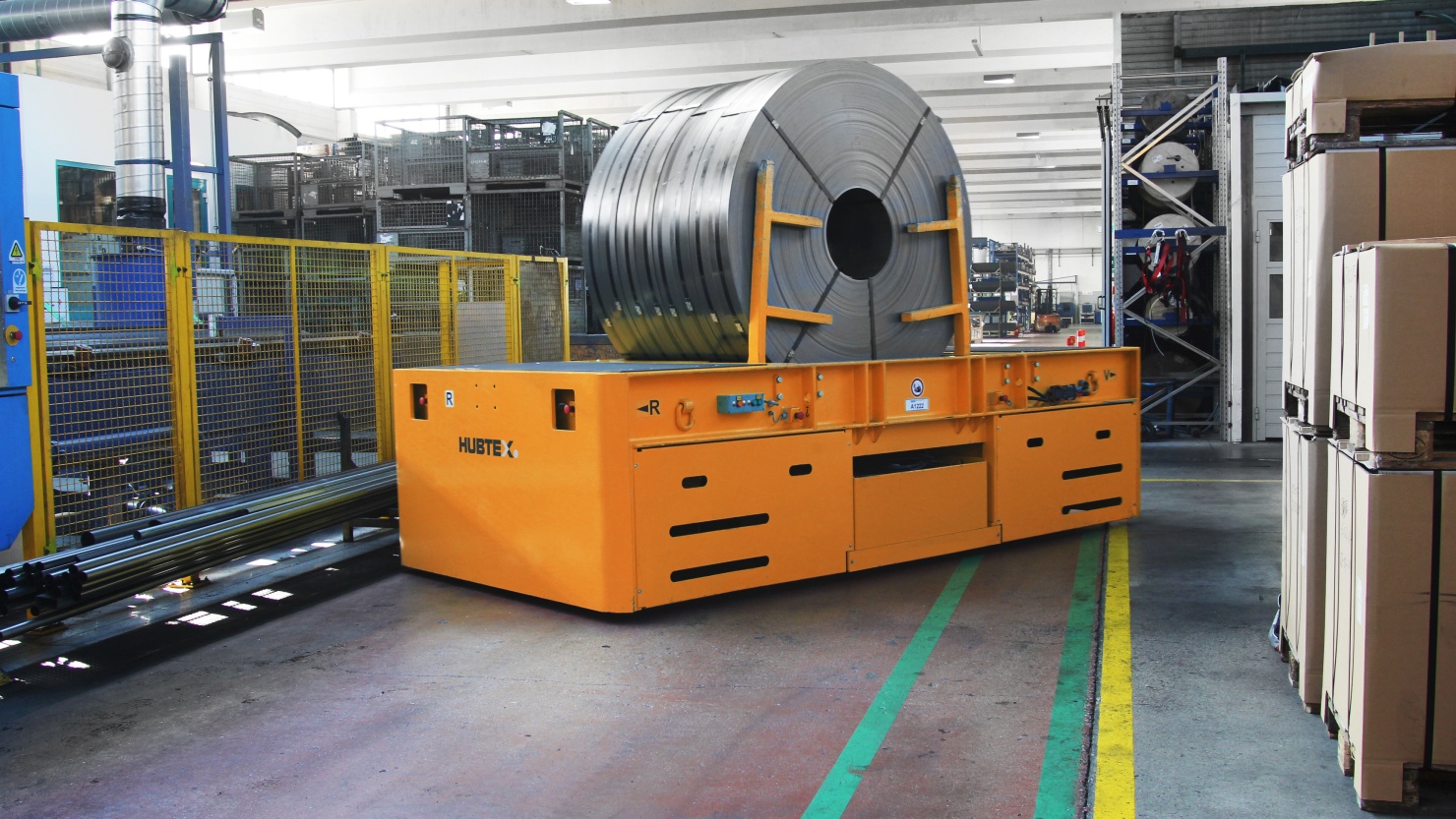

• Coil Shuttles/Railcars: These are rail-mounted transfer carts designed for precise, point-to-point movement of coils, typically between adjacent crane bays or between fixed processing stations.⁴ They offer a dedicated transfer solution without tying up more flexible resources like forklifts or overhead cranes.⁴
• Coil Transporters/Carts: These are non-automated, free-ranging carts, sometimes powered or designed to be towed by a tugger, used for moving coils within the plant.⁵ They offer more flexibility than fixed shuttles but require manual operation or towing. Custom cradles can be fitted for secure coil transport.⁴

The increasing prevalence of automation across all internal transport methods—from smart cranes with anti-sway and WMS integration ¹⁹ to the inherent automation of conveyors ² and the expanding role of AGVs ²¹—reflects a strong industry drive. This push aims to enhance efficiency, improve precision, bolster safety by reducing manual intervention, and enable more sophisticated, data-driven management of internal logistics.²⁵

A complementary relationship often exists between overhead and floor-based systems. Overhead cranes remain indispensable for heavy lifting within their operational bay and for loading/unloading high-capacity storage areas.¹ Floor-based systems like AGVs, conveyors, and shuttles then handle the horizontal flow between bays, feed processing lines directly, or provide transport flexibility in areas lacking crane coverage or requiring complex routes.⁴ Facilities frequently employ a strategic mix, leveraging the high-lift capacity of cranes and the targeted transport capabilities of floor-based systems to create an optimized overall flow.

The adoption of AGVs, in particular, signals a move towards more adaptable and potentially resilient intralogistics. Unlike fixed conveyors or bay-restricted cranes, AGVs can navigate complex paths, reroute dynamically around obstacles or temporary closures, and adapt to changes in facility layout with relative ease.²³ A fleet of AGVs also offers inherent redundancy; the failure of one unit typically does not halt the entire transport system.⁸ This flexibility provides significant operational advantages, especially in dynamic manufacturing environments with evolving production requirements.

V. External Logistics and Transport Methods

Moving steel coils beyond the production facility requires specialized equipment and meticulous procedures across different modes of transport—road, rail, and sea—to ensure safety and prevent damage during transit.

A. Road Transport:

• Equipment: Transporting heavy, cylindrical steel coils by road necessitates specialized trucks. Standard flatbed trailers are often insufficient unless equipped with specific adaptations. Common solutions include flatbeds fitted with coil troughs (recessed channels), cradles, or specialized coil racks designed to securely hold the coil and prevent movement.³ Dedicated coil trailers, custom-built for this purpose, offer enhanced safety and stability.²⁶ Other truck types like tautliners (curtain-sided) and plateau trucks may also be used, presumably with internal securement systems.²⁷
• Securement: Proper securement is absolutely critical due to the coil’s weight, tendency to roll, and high center of gravity when loaded "eye to the side" – a configuration sometimes referred to as "suicide coil" due to the risks if improperly secured.²⁸ Securement involves multiple layers:
  • Support/Blocking: Coils loaded "eye to the side" must be prevented from rolling using sturdy timber dunnage (often 4×4 or 6×6, sometimes beveled), coil racks, or chocks placed against the rolling edges.²⁹ Friction mats (rubber) are often placed under dunnage or racks to prevent sliding on the trailer deck.²⁹
  • Tie-downs: Heavy-duty chains or, more commonly (to prevent damage), high-strength synthetic straps are used to firmly secure the coil to the trailer.³⁰ Federal regulations, such as the US FMCSA’s CFR §393.120, mandate specific requirements for the number, placement, and strength of tie-downs based on coil weight and arrangement.³¹ For example, regulations often require tie-downs restraining against forward, rearward, and vertical motion, with specific angles preferred.³¹ A common rule is one tie-down for every 10,000 pounds, with each tie-down rated to half the cargo’s weight.²⁹ Straps are passed through the eye, over the top, or around the coil base depending on the configuration and number required.²⁹ Edge protectors are essential where straps pass over sharp coil edges to prevent cutting.³⁰
• Loading Configuration: Coils can be transported "eye to the side" (axis horizontal, resting on the curved edge within cradles/dunnage) or "eye to the sky" (axis vertical, resting flat on the trailer deck).²⁷ "Eye to the sky" eliminates rolling risk but still requires dunnage, friction mats, and specific strapping patterns (e.g., X-pattern or "spider" pattern over the top) to prevent sliding or tipping.²⁹
• Considerations: Road transport requires careful planning regarding route selection (avoiding weight-restricted roads), adherence to axle weight limits, and driver expertise in handling heavy, potentially unstable loads.³ Specialized carriers with experience in steel transport are typically necessary.³ Cross-border transport (e.g., USA-Canada) adds complexity due to customs procedures, documentation, tariffs, and potentially differing regulations.²⁸

B. Rail Transport:

• Equipment: Rail transport utilizes specialized "Coil Cars" (a type of gondola) explicitly designed for steel coils.³² These cars feature integrated troughs, cradles, or side brackets that securely hold the coils, preventing rolling and shifting during transit.³² Many coil cars are equipped with removable hoods or covers to protect the coils from weather elements, particularly important for sensitive products like cold-rolled or coated steel.³² Standard gondola cars can also sometimes be used, likely requiring extensive dunnage and securement.³³
• Loading/Unloading: Loading and unloading coils onto railcars is typically performed using heavy-capacity overhead cranes (with appropriate lifting devices like C-hooks or magnets) or large forklifts equipped with coil rams.³²
• Advantages: Rail transport offers significant economic and logistical advantages for moving large volumes of steel coils, especially over long distances.³² A single coil car can carry very heavy loads (up to approx. 200,000 pounds or 100 tons) ³², and a single train can transport the equivalent freight of hundreds of trucks.³² This high capacity makes rail a cost-effective option per ton-mile.³² Furthermore, rail transport is generally more fuel-efficient than trucking and helps alleviate highway congestion.³²
• Considerations: The primary limitation of rail transport is the requirement for rail infrastructure access at both the origin and destination points. Transit times may be longer compared to direct truck transport, particularly for shorter distances, and scheduling is dependent on railway operator timetables and services.³⁴

C. Maritime Shipping (Ocean/Inland Waterways):

• Methods: Steel coils are transported by water either as break bulk cargo loaded directly into the holds of specialized or general cargo vessels, or within standard intermodal shipping containers.²⁷
• Containerization Challenges: Transporting heavy steel coils in standard General Purpose (GP) containers presents significant challenges.³⁵ Containers are designed for evenly distributed loads, whereas a heavy coil concentrates immense weight onto a very small footprint, potentially exceeding the container floor’s load-bearing capacity (often specified in kg per running meter).³⁵ Improper loading can lead to container floor failure, coil damage (ovalization, scratches), and unsafe conditions.³⁵ Only containers certified for heavy loads (e.g., 30 tonnes tested 20′ containers) should be considered.³⁶
• Stowage & Securing (Containers): Safe container transport requires engineered solutions:
  • Floor Contact: Coils must never be placed directly on the container floor.³⁶
  • Weight Distribution: Longitudinal bedding beams (heavy timber or steel) must be placed on the container floor (typically near the side walls to maximize support from cross members) to distribute the coil’s weight over a larger area.³⁵ Beam dimensions depend on coil weight.³⁷
  • Support Structures: Coils must be secured onto robust cradles (wood or steel) or specialized reusable pallet systems (like the MOL COILPORTER® ³⁸) which are then placed on the bedding beams.³⁵ These structures support the coil whether loaded "eye to side," "eye fore and aft," or "eye to sky" (typically smaller coils on pallets).³⁵
  • Blocking/Lashing: The coil/cradle assembly must be firmly blocked and wedged against movement in all directions (forward, rearward, sideways).³⁵ Heavy-duty lashings (straps or wires) must be used to secure the coil/cradle assembly to the container’s designated lashing points (securing rings).³⁶ The combined breaking strength of the lashings must be significantly greater than the coil weight (recommendations range from 1.8 to 5 times the coil weight).³⁶ Chafing protection is needed where lashings contact the coil or other lashings.³⁷ Inflatable dunnage bags can be used to fill void spaces.³⁹
• Stowage & Securing (Break Bulk): Loading coils directly into ship holds requires careful planning based on the vessel’s structure and stability requirements.⁴⁰ Extensive use of timber dunnage is necessary to protect the coils and the ship structure, and to properly distribute weight.⁴⁰ Coils are often stowed in multiple layers, typically with layers above the first being placed in the "cantlines" (the valleys between coils in the layer below) to form a stable, interlocking stow (pyramid stow).⁴⁰ Preventing transverse (sideways) movement is critical. This is achieved through secure wedging of coils (especially the bottom layer and wing coils) and extensive lashing using steel strapping or wires, sometimes in traditional patterns like the "Maputo" lashing (a figure-eight pattern connecting three coils).⁴⁰ Locking coils are strategically placed to secure the ends of rows.⁴⁰
• Damage Prevention: Beyond securement, protecting coils from corrosion (rust caused by seawater or condensation/sweat) is vital during sea voyages.³⁵ This requires appropriate packaging (see Section VII), ensuring holds/containers are dry and weather-tight, and potentially managing ventilation.⁴¹ Preventing mechanical damage (denting, scratching, telescoping) requires careful handling during loading/discharge (using appropriate equipment like webbing slings or padded C-hooks/forks) and robust packaging/banding.³⁵

• Standards/Guidelines: Safe stowage and securing practices are guided by international codes like the IMO’s Code of Safe Practice for Cargo Stowage and Securing (CSS Code) ⁴¹ and specific guidelines like IMO MSC/CIRC 745 for securing manuals.³⁷ Individual shipping lines often have their own detailed requirements and recommendations for transporting steel coils.³⁵

Across all external transport modes, the common thread is the absolute necessity for specialized equipment and rigorous adherence to securement protocols.³² The immense weight and rolling potential of steel coils mean that any failure in securement can have devastating consequences, including severe accidents, loss of life, and substantial economic losses from damaged cargo and equipment.³⁰ This inherent risk underscores why steel coil transport is a specialized field requiring specific expertise and equipment.

Containerization, while offering the logistical benefits of intermodal transport, introduces specific engineering challenges due to the mismatch between the concentrated load of a coil and the design of a standard container.³⁵ Overcoming these challenges requires significantly more complex and engineered solutions—such as robust bedding beams, custom-built cradles, or innovative reusable systems like the MOL COILPORTER® ³⁸—compared to the more straightforward loading onto open flatbeds, rail coil cars, or into the hold of a break bulk vessel. This highlights the trade-offs involved in choosing containerization for steel coils.

Ultimately, the selection of an external transport mode (or combination of modes) involves balancing factors like transit distance, required speed, shipment volume, overall cost, and the availability of necessary infrastructure (rail access, port facilities).³² Logistics providers specializing in steel often offer multimodal solutions, combining road, rail, and sea transport to create the most efficient and cost-effective supply chain for their clients.²⁷

Table 2: Comparison of External Steel Coil Transport Modes

Transport Mode	Typical Equipment	Key Securement Methods	Typical Volume/Capacity	Relative Speed	Relative Cost (per ton-mile)	Key Advantages	Key Disadvantages/Challenges	Infrastructure Needs
Road Truck	Specialized Coil Trailers, Flatbeds w/ Cradles/Racks	Strapping, Chains, Dunnage, Chocks, Friction Mats, Edge Protectors (FMCSA Regs)	1-2 Coils per truck (20-25 tons)	High	High	Flexible routing, fast for short/medium distances, door-to-door service	Weight limits, road restrictions, driver expertise needed, higher cost/fuel use for long distance, traffic congestion	Road network
Rail	Dedicated Coil Cars (w/ troughs/cradles, opt. hoods)	Integrated car design, potentially supplementary blocking/strapping	High (Multiple cars per train, up to 100 tons/car)	Medium-Low	Low	High capacity, cost-effective (long distance), fuel-efficient, reduces road traffic	Requires rail access at origin/destination, potentially longer transit times, scheduling dependent on rail operator	Rail network, Sidings
Maritime Container	Standard GP or Heavy-Tested Containers	Bedding Beams, Cradles/Special Pallets (e.g., COILPORTER®), Blocking, Wedging, Lashing	1-2 Coils per TEU (up to ~25-28 tons)	Low	Very Low	Intermodal flexibility, global reach, protection from elements (if sealed)	High risk if improperly loaded (floor overload), complex/costly securement needed, potential for condensation inside container	Port facilities, Roads/Rail
Maritime Break Bulk	Cargo Vessel Holds	Extensive Dunnage, Wedging, Lashing (Steel Straps/Wires), Cantline Stowage, Locking Coils	Very High (Thousands of tons)	Low	Very Low	Highest volume capacity, potentially simpler loading than container for large coils	Requires specialized vessels/ports, exposure risk during loading/unloading, complex stowage planning needed for stability	Port facilities, Cranes

VI. Safety Procedures, Regulations, and Hazard Mitigation

The handling and transportation of heavy steel coils present significant safety risks. A comprehensive approach integrating robust procedures, adherence to regulations, appropriate equipment, and thorough training is essential to mitigate these hazards and protect personnel.

A. Common Hazards:

• Falling/Rolling Coils: This is a primary hazard, stemming from insecure storage (improper stacking, lack of racking/chocking), failure during lifting (sling/grab failure, overload), or inadequate securement during transport.⁶ The high center of gravity, especially for coils stored or transported "eye to the side," exacerbates this risk.²⁸
• Banding Failures: Steel bands securing the coil wraps are under significant tension. If bands are damaged (e.g., by improper handling, corrosion) or improperly applied (incorrect material, insufficient number, poor crimping), they can fail suddenly, causing the coil to rapidly unwind ("spring open") or collapse, releasing stored energy explosively.⁶ This is particularly dangerous during initial lifts when bands are subjected to increased forces.⁴²
• Equipment Failure/Misuse: Malfunctions or improper use of handling equipment pose serious risks. This includes crane or hoist overload/failure ¹, forklift instability leading to tip-overs (due to exceeding load center limits or dynamic forces) ⁶, structural failure of lifting attachments, or issues with conveyors.⁸
• Pinch Points: Numerous pinch points exist where workers can be caught: between coils during handling or storage, between a coil and equipment (e.g., crane grab arms, forklift mast), or within the moving parts of machinery like conveyors (rollers, driveshafts), upenders, or compactors.⁶
• Sharp Edges: Both the edges of the steel coils themselves and the steel banding used to secure them can be extremely sharp, posing a significant risk of severe lacerations to personnel handling them.⁶
• Struck-by/Caught-between: Accidents involving personnel being struck by or caught between moving equipment (forklifts, AGVs, overhead cranes carrying loads, rolling railcars) and fixed structures or the coils themselves are a constant concern in busy handling areas.⁶ Poor visibility and inadequate traffic management contribute to this risk.⁴³
• Ergonomic Hazards: Manual tasks associated with coil handling, such as manually guiding loads, applying strapping or wrapping materials, or inspecting coils, can involve awkward postures (bending, twisting), repetitive motions, and forceful exertions, leading to musculoskeletal disorders (MSDs), particularly affecting the back and upper extremities.⁶
• Environmental Hazards: Slippery surfaces (oil, water) in storage and handling areas can cause slips, trips, and falls.⁴⁴ In hot mill environments, exposure to extreme heat during handling poses burn risks.⁴⁵ Poor housekeeping can create tripping hazards or obstruct safe movement.⁴⁴

B. Critical Safety Procedures:

• Equipment Inspection: Rigorous pre-use inspection of all handling equipment (cranes, hoists, forklifts, AGVs, lifting attachments like C-hooks, grabs, magnets, slings) and personal protective equipment is mandatory to identify defects or damage before operation.⁴⁶
• Proper Lifting Techniques: Always use mechanical lifting equipment rated for the specific load weight and dimensions.¹ Avoid manual lifting whenever possible.⁴⁶ Ensure loads are properly balanced and stable before and during the lift. Follow manufacturer guidelines for equipment operation.⁶ Forklift operators must understand load center principles to prevent tip-overs.⁴³
• Securement Protocols: Strict adherence to documented procedures for banding coils (correct material, number of bands, placement, crimping, use of edge protectors) ⁴² and securing them for transport via road (FMCSA §393.120) ³¹, rail, or sea (IMO guidelines) ³⁷ is non-negotiable. This includes correct use of straps, chains (where permissible), dunnage, chocks, cradles, and lashing techniques.³⁰
• Safe Stacking and Storage: Implement and enforce safe stacking procedures, limiting tier height to maintain stability.⁴² Utilize appropriate storage solutions like coil racks or floor dunnage/skids to prevent rolling and contact with the floor.⁴ Maintain clear, unobstructed, and well-marked aisles and passageways.⁴⁷ Ensure storage areas are kept clean and free of hazards.⁴⁴
• Operator and Pedestrian Positioning: Personnel must maintain a safe distance from suspended loads, operating machinery, and potential band failure zones ("line of fire").⁴² Never stand or walk under a suspended load.³⁰ Be aware of equipment blind spots.
• Traffic Management: Implement traffic control plans in areas where mobile equipment (forklifts, AGVs, trucks, railcars) operates. Control personnel access to high-risk zones. Ensure adequate lighting and visibility. Use warning signals (lights, alarms) and potentially physical barriers like safety gates in high-traffic areas.⁴⁶ Provide derail/bumper blocks on rail spurs.⁴⁴
• Lockout/Tagout (LOTO): Implement and strictly enforce LOTO procedures for controlling hazardous energy during maintenance, servicing, or cleaning of handling machinery (cranes, conveyors, compactors, etc.).⁴⁶ Address stored energy sources.⁴⁸
• Personal Protective Equipment (PPE): Mandate and ensure the correct use of appropriate PPE for the task. This typically includes ANSI-certified hard hats, ASTM-compliant steel-toe boots (often with slip resistance), high-level cut-resistant gloves (e.g., ANSI A5+), ANSI-certified safety glasses or face shields, high-visibility clothing (vests), and hearing protection in noisy environments (e.g., >85 dBA).⁶ Back support belts may be considered for specific tasks, though engineering controls are preferred.⁴⁶
• Training and Procedures: Develop detailed Safe Work Procedures (SWPs) for all coil handling tasks, including specific sequences for operations like banding/re-banding.⁴² Provide comprehensive, task-specific training to all employees involved (crane operators, forklift drivers, riggers, loaders, truck drivers) covering procedures, hazard recognition, and emergency response.⁶ Conduct job hazard analyses (JHAs) or risk assessments for each task to identify and control risks.⁴³ Ensure procedures are understood (especially for non-English speakers) and consistently enforced.⁶

C. Relevant Regulations and Standards:

A complex web of regulations and standards governs steel coil handling safety:

• OSHA (USA): Sets mandatory workplace safety standards. Key regulations include:
  • General Duty Clause (Sec 5(a)(1)): Requires employers to provide a workplace free from recognized hazards causing or likely to cause death or serious physical harm.⁴²
  • 29 CFR 1910 (General Industry): Subpart N (Materials Handling: 1910.176 – General storage/aisles, 1910.178 – Forklifts, 1910.179 – Cranes, 1910.184 – Slings) ⁴³; Subpart O (Machine Guarding: e.g., for conveyors) ⁴³; Subpart D (Walking-Working Surfaces: 1910.22 – Clear aisles) ⁴³; 1910.147 (LOTO) ⁴⁹; 1910.1200 (HazCom – requiring SDS for steel coils) ⁵⁰; Subpart I (PPE).⁴⁹
  • 29 CFR 1926 (Construction): Subpart H (Materials Handling: 1926.250 – Storage requirements, stacking, aisles).⁴⁷
  • OSHA also issues interpretations ⁵⁰ and documents violations ⁴² that provide further guidance. State Plans may have stricter requirements.⁴⁹
• ANSI (USA): Develops voluntary consensus standards often referenced by OSHA or adopted as best practice. Relevant standards include:
  • ANSI B11.18-1992: Specific recommendations for coil banding (referenced in an OSHA violation).⁴²
  • ANSI MH16.1: Design, testing, and utilization of industrial steel storage racks.⁴⁷
  • ANSI/ISEA Z87.1: Practice for Occupational and Educational Eye and Face Protection Devices.⁴⁶
  • ANSI/ISEA Z89.1: Requirements for Industrial Head Protection.⁴⁶
  • ANSI/ISEA 107: High-Visibility Safety Apparel and Accessories.⁴⁶
• AIST (International): The Association for Iron & Steel Technology is a key industry organization promoting safety and health within the steel sector. While not issuing mandatory regulations like OSHA, AIST publishes technical reports, safety guidelines, and best practices focusing on hazard assessment, ergonomic improvements, machine guarding (referencing ISO 12100), LOTO, PPE, and technology adoption specific to steel manufacturing environments.⁵¹
• ISO (International): Develops international standards.
  • ISO 12100: Basic concepts, general principles for design – Risk assessment and risk reduction for machinery safety.⁴⁸
  • ISO 9001 / 14001: Quality and Environmental Management system standards, often held by logistics providers as indicators of operational control.⁵²
• FMCSA (USA): Regulates commercial motor vehicle safety.
  • 49 CFR §393.120: Specific federal regulations detailing the requirements for securing metal coils on commercial motor vehicles.³¹
• IMO (International): Sets standards for maritime safety.
  • CSS Code: Code of Safe Practice for Cargo Stowage and Securing, providing general principles applicable to securing cargo, including steel coils, on ships.⁴¹
  • MSC/CIRC 745: Guidelines for the preparation of the Cargo Securing Manual required on board ships.³⁷

Ensuring safety in steel coil handling requires a holistic, systems-based perspective. It’s not enough to focus solely on equipment design or operator training; rather, safety emerges from the effective integration of well-maintained and appropriate equipment, rigorously developed and enforced procedures, comprehensive and ongoing training, consistent use of correct PPE, and strict adherence to the complex network of applicable regulations and standards.⁴⁶

While regulatory compliance (particularly with OSHA in the US) establishes a fundamental baseline for safety ⁴⁴, the unique and potentially severe hazards associated with steel coils often demand practices that go beyond minimum requirements. Industry-specific guidance, such as that provided by AIST, and proactive, task-specific hazard assessments are crucial for identifying and effectively mitigating risks.⁵³ An OSHA violation citing failure to address recognized hazards despite basic compliance underscores this point.⁴²

Many of the most significant hazards are direct consequences of the inherent physical properties of steel coils: their massive weight, cylindrical shape prone to rolling, the stored potential energy in banding, and sharp edges.⁶ This necessitates the development and use of specialized safety measures often not required for general cargo, such as purpose-built coil cradles for transport ²⁹, detailed multi-band strapping procedures ⁴², high-level cut-resistant gloves ⁴⁶, and robust racking or blocking systems for storage.⁴⁷

VII. Preventing Coil Damage During Handling and Transit

Beyond safety, preventing damage to the steel coils themselves is a critical economic consideration. Damage can range from cosmetic surface flaws to structural issues that render the coil unusable, leading to significant financial losses.²⁸ Prevention requires attention during handling, appropriate packaging, and control of the storage and transport environment.

A. Types of Damage:

• Mechanical Damage: This is physical damage caused by impacts, abrasion, or improper support. Common forms include:
  • Surface Damage: Scratches, gouges, dents on the coil faces or wraps.² Critical for finished products like painted or polished steel.¹⁷
  • Edge Damage: Chipping, bending, or deformation of the coil edges, often caused by impact during handling or setting down on uneven surfaces.⁶ Can necessitate slitting to a narrower width, resulting in material waste.¹⁷
  • Ovalization/Flattening: Distortion of the coil’s circular shape due to excessive pressure, such as improper stacking or overly tight strapping without adequate support.³⁵
  • Telescoping: Axial shifting of the inner wraps relative to the outer wraps, resulting in an uneven coil face. Caused by loose winding or inadequate banding.²
• Corrosion/Rust: Oxidation of the steel surface caused by exposure to moisture (rain, humidity, condensation, seawater).³⁵ This is a major concern, especially for unprotected surfaces or sensitive products like cold-rolled steel, galvanized steel, and other coated materials.³⁵ Seawater accelerates corrosion significantly.⁴¹
• Contamination: Residues from previous cargo, dirt, debris, or improper lubricants can contaminate the coil surface, potentially affecting downstream processing or final product quality.¹⁷

B. Protective Handling Techniques:

• Equipment Selection and Features: Choosing the right equipment interface is crucial. Non-contact magnetic lifters are preferred for highly sensitive surfaces to avoid scratches or clamp marks.¹ When using C-hooks or mechanical grabs, ensuring they have smooth, curved contact surfaces or are fitted with protective padding (e.g., polyurethane, rubber) minimizes damage.¹² For processing lines, using sleeved mandrels (rubber or polyurethane "boots") on uncoilers and recoilers cushions the coil ID and distributes pressure, preventing deformation.¹⁷ Using dedicated coil rams on forklifts instead of standard forks prevents damage to the inner wraps.¹⁵
• Smooth Operation: Careful and controlled operation of handling equipment is vital. This includes smooth acceleration/deceleration of cranes and transport vehicles to minimize shock loads and swaying.¹ Coils should be lifted and placed gently, avoiding impacts with other objects or the ground.³⁰ Dragging coils across surfaces must be avoided.³⁰ Precision control systems on modern cranes and AGVs aid in achieving smooth, accurate movements.¹
• Handling Equipment Maintenance: Regularly inspecting lifting devices (C-hooks, grabs, forklift attachments) to ensure they are free from burrs, sharp edges, or protruding parts that could gouge or scratch the coil surface is important.¹⁷

C. Packaging Methods:

Packaging serves multiple purposes: protecting against environmental factors (moisture, dirt), preventing mechanical damage during handling and transit, and helping to maintain coil integrity (preventing telescoping).

• Wrapping Materials: Multiple layers are often used, especially for sensitive coils or long-distance/maritime transport:
  • Inner Layers: Corrosion protection using VCI paper or film is common, especially for bare steel or long transit times.³⁹ Plastic-coated kraft paper or fiber-reinforced papers provide a basic moisture and physical barrier.⁵⁴
  • Outer Layers: Stretch film helps secure inner layers and provides dust/moisture protection.⁵⁵ Heavy-duty polyethylene (PE) film (e.g., 150 µm thick) offers a robust moisture barrier.⁵⁶ For maximum protection, especially maritime, hardboard panels or full metal envelopes (sheet metal packaging) are used.⁵⁴ Wrapping materials must extend sufficiently into the coil eye.⁵⁶
• Strapping: Essential for securing the coil windings to prevent telescoping and for holding the packaging layers in place.² Typically involves multiple steel or high-strength polyester straps applied both circumferentially around the OD and radially through the eye of the coil.⁴² The number, placement, and tension are critical and often specified by standards or customer requirements.⁴² Seal protectors placed under the strap seals can prevent damage at the seal point.⁵⁶
• Edge Protection: Applying protectors made of cardboard, plastic, or metal to the sharp edges of the coil’s inner and outer diameters serves two purposes: it protects the coil edge itself from impact, and it prevents the sharp steel edge from cutting or tearing the wrapping materials or straps.⁴² Corner protectors may also be used.³⁹
• Internal Protection: When multiple coils are transported together, padding or separators should be used between them to prevent metal-to-metal contact and friction damage.⁵⁷
• Packaging Levels: The complexity of the packaging varies. Basic "standard" packaging might involve only strapping for robust, less sensitive coils like hot-rolled steel.⁵⁴ "Paper packaging" adds a layer of protective paper wrap.⁵⁴ "Maritime packaging" typically involves multiple layers (e.g., VCI, paper, plastic film, hardboard/metal shell), extensive edge protection, and robust strapping, designed to withstand the harsh conditions and multiple handling steps of sea transport.⁵⁴ Automated packaging lines can apply these materials consistently and efficiently.⁷

D. Storage and Transport Environment:

• Storage Conditions: To minimize corrosion and contamination, indoor storage in a dry, clean, well-ventilated area is strongly recommended, especially for high-grade or sensitive coils.⁵⁶ Coils should not be placed directly on concrete floors, which can hold moisture and cause damage; use wooden skids, plastic blocks, specialized coil pads, or storage racks.⁴⁷ Stacking should be limited (e.g., max 3 high suggested) to prevent deformation of bottom coils due to weight.¹⁷ If coils must be stacked in cantlines, friction-enhancing mats (e.g., rubber) should be placed between layers to prevent slipping.⁵⁶
• Transport Dunnage and Support: During transport (road, rail, or sea), coils require proper support and securement using dunnage. This includes timber beams to distribute weight in containers ³⁵, coil racks or beveled timber for support on flatbeds ²⁹, robust cradles for container or break bulk shipping ³⁵, or specialized reusable pallets like the MOL COILPORTER®.³⁸ Dunnage prevents movement, absorbs shocks, and protects coils from contact with transport vehicle surfaces.³⁹
• Moisture Control: Actively managing moisture is critical, especially during long transit or storage in humid conditions. This involves using desiccants within sealed packaging or containers to absorb ambient moisture.³⁹ Ensuring containers or ship holds are dry and weather-tight before loading is essential.⁴¹ A crucial practice is allowing coils arriving from a cold environment to acclimate to room temperature before unwrapping; this prevents condensation ("sweating") from forming on the cold steel surface.⁵⁶ Proper ventilation strategies may also be employed during sea transport to manage humidity within holds.⁴¹
• Cleanliness: Transport vehicles (truck beds, railcar floors, containers, ship holds) must be thoroughly cleaned and free of debris, contaminants, or residues from previous cargoes before loading steel coils to prevent contamination and potential damage.⁴¹

Protecting valuable steel coils from damage requires a comprehensive strategy that extends beyond simply choosing the right lifting tool. It involves integrating careful handling practices during every movement ³⁰, applying appropriate levels of protective packaging tailored to the coil type and journey ⁵⁴, and maintaining controlled environmental conditions during both storage and transit.⁵⁶ Overlooking any one of these aspects can compromise the integrity of the coil.

The necessary level of protection is directly related to the coil’s value and sensitivity, as well as the anticipated rigors of its journey. Less sensitive products like standard hot-rolled coils may only require basic strapping for short domestic transport ⁵⁴, whereas high-value, surface-critical cold-rolled or coated coils destined for overseas shipment demand multi-layered packaging incorporating VCI materials, moisture barriers, robust edge protection, and potentially external metal shells.⁵⁴ This tiered approach reflects the need to balance protection costs against the risk and cost of potential damage.

Furthermore, maintaining the structural integrity of the coil is as vital as protecting its surface. Preventing telescoping through adequate circumferential and through-eye banding is a key function of the packaging process.³⁵ A telescoped coil is difficult to handle, prone to edge damage, and may be unusable in subsequent processing operations. Therefore, effective damage prevention addresses both surface quality and structural form.

VIII. Advancements and Trends in Coil Handling Technology

The steel coil handling and transport sector is continually evolving, driven by the pursuit of greater efficiency, enhanced safety, improved quality control, and better integration with overall manufacturing and logistics processes. Key trends involve increasing automation, sophisticated sensor applications, and leveraging data through integrated systems.

A. Automation and Robotics:

• Automated Crane Systems: Beyond simple remote control, overhead cranes are increasingly automated. Features include PLC-based precision control for positioning and movement, active anti-sway systems for stability at high speeds, and full integration with WMS for automated storage and retrieval (AS/RS) operations in coil yards and warehouses.¹⁹ These systems enable high throughput, consistent handling, reduced labor requirements, and continuous 24/7 operation.²⁰
• AGVs/AMRs: Automated Guided Vehicles (AGVs) and the more autonomous Autonomous Mobile Robots (AMRs) are gaining traction for floor-based transport.⁵⁸ Specifically designed heavy-load AGVs can transport coils weighing up to 100 tons, offering flexible routing without fixed infrastructure, enhancing safety by removing operators from the floor, and providing redundancy.²¹ AMRs offer even greater autonomy in navigation and task execution.⁵⁸

• Robotic Handling and Manipulation: Industrial robots are being deployed for tasks requiring high precision and repeatability, such as placing coils onto processing equipment, manipulating them during inspection, or performing complex handling sequences within automated cells.²⁵ These robots can adapt to variations in coil size and weight using sensor feedback.²⁵
• Automated Packaging Lines: Automation extends to the end-of-line packaging processes. Systems can automatically apply wrapping materials (paper, film), insert edge protectors, apply strapping, retrieve and insert dunnage (wooden blocks/runners), and stack finished packages.⁷ This increases packaging speed and consistency, improves package integrity, and reduces demanding manual labor.⁵⁹
• Collaborative Robots (Cobots): While perhaps less common for direct handling of massive coils, cobots are emerging in related warehouse and manufacturing tasks. They are designed to work safely alongside human employees, assisting with tasks like lifting auxiliary materials, performing repetitive actions in packing, or aiding in assembly processes, improving ergonomics and efficiency.⁵⁸

B. Sensor Technology and Vision Systems:

Advanced sensors are the eyes and ears of modern automated handling systems.

• Positioning and Navigation: Lasers (rangefinders, scanners) and encoders provide precise position feedback for cranes and AGVs.¹⁹ SLAM technology enables AGVs to navigate dynamically without fixed infrastructure.²³ Angle sensors are used in crane anti-sway systems.¹⁹
• Safety and Collision Avoidance: Sensors (laser scanners, proximity sensors, vision systems) are critical for detecting obstacles in the path of AGVs or cranes, enabling them to slow down, stop, or reroute to prevent collisions with equipment, structures, or personnel.¹⁹ Light curtains create safety barriers around hazardous machinery.⁵⁵
• Automated Quality Control: Vision systems integrated into processing or packaging lines can automatically inspect coil surfaces for defects like scratches or coating irregularities at high speeds.²⁵ Sensors can measure coil dimensions (diameter, width) and verify the integrity and correct application of packaging materials.²⁵ Machine learning algorithms are increasingly used to improve the accuracy and adaptability of these automated inspection systems.²⁵
• Identification and Tracking: Automated identification technologies are essential for tracking coils through the facility and supply chain. Barcode readers are common.⁶⁰ RFID tags offer potential for non-line-of-sight identification.⁵⁸ Sensors embedded in pallets or carriers can provide location data.² WMS systems may use machine vision to automatically identify coils arriving on trucks or trains based on their position and dimensions.⁶⁰

C. Integration with WMS, IoT, and Data Analytics:

The true power of modern handling systems comes from their integration and the data they generate.

• Warehouse Management Systems (WMS): These software platforms are central to managing automated coil storage and handling.⁷ They receive orders from host systems (MES, ERP), optimize storage locations, generate and dispatch transport tasks to automated cranes and AGVs, track coil inventory in real-time, and provide operators with system status information.⁷
• Internet of Things (IoT): Embedding sensors in handling equipment (cranes, AGVs, conveyors) and potentially on the coils or their carriers allows for the collection of vast amounts of real-time data.²⁵ This data can include equipment status, operating parameters (speed, load, temperature), energy consumption, and coil location/condition.²⁵ This enables unprecedented real-time visibility and tracking throughout the internal logistics process and potentially the wider supply chain.⁶¹
• Data Analytics and AI/ML: The data collected via WMS and IoT provides fertile ground for advanced analytics.⁶¹ Analyzing operational data can identify bottlenecks, optimize crane and AGV routing, improve energy efficiency, and predict maintenance needs for handling equipment, reducing downtime.²⁵ Artificial intelligence (AI) and machine learning (ML) algorithms are being integrated into WMS and control systems to enhance real-time decision-making, improve demand forecasting, and refine automated quality control processes.²⁵
• Cloud-Based Solutions: There is a growing trend towards deploying WMS and related analytics platforms in the cloud.⁶¹ Cloud solutions offer scalability (easily adjusting computing resources as needed), accessibility from anywhere, reduced infrastructure burden, and often easier integration with other enterprise systems.⁶¹
• Digital Transformation (Industry 4.0): These individual advancements are part of a broader trend known as Industry 4.0 or digital transformation in the steel industry.²⁵ The goal is to create highly interconnected, data-driven, and intelligent manufacturing and logistics systems that are more efficient, flexible, sustainable, and resilient.⁵¹

The evolution of coil handling automation is clearly moving beyond automating isolated tasks towards creating fully integrated, intelligent systems. While early automation might have focused on a single robotic packaging station ⁵⁹ or a wire-guided AGV ⁸, contemporary solutions emphasize system-wide coordination. A modern WMS, for example, acts as the brain, directing fleets of automated cranes and AGVs, receiving real-time status updates, and interfacing seamlessly with production planning systems.⁶⁰ This level of integration, fueled by data from ubiquitous sensors and analyzed using sophisticated algorithms, represents a significant leap towards the goals of Industry 4.0 in the steel sector.²⁵

Sensor technology is the foundational element enabling these advanced capabilities. Without accurate real-time data on position, orientation, proximity, surface condition, and equipment status provided by lasers, vision systems, encoders, and other sensors, the complex navigation, precise control, automated inspection, and collision avoidance functions of modern systems would be impossible.² Sensors bridge the physical world of coil handling with the digital realm of control and optimization.

Importantly, the drivers for adopting these advanced technologies extend beyond pure operational efficiency and cost reduction. Enhanced safety, achieved by removing human operators from hazardous environments and automating high-risk tasks, is a major benefit frequently cited.²⁴ Improved product quality and consistency, resulting from the precision of robotic handling and the accuracy of automated inspection, are also key value propositions.²⁵ Furthermore, the flexibility offered by systems like AGVs allows manufacturers to adapt more readily to changing production demands and layouts ²³, while automation can also improve workplace ergonomics.²⁵ This multi-faceted value proposition explains the strong and growing trend towards technological advancement in steel coil handling.

IX. Comparative Analysis of Handling and Transport Systems

Selecting the most appropriate handling and transport systems for steel coils requires a careful evaluation based on multiple criteria, weighing the strengths and weaknesses of different technologies against specific operational needs and constraints.

A. Criteria for Comparison:

• Load Capacity: The maximum weight the equipment can safely handle. This is a primary constraint, as steel coils vary significantly in weight.¹ Equipment must be matched to the heaviest anticipated loads.
• Operational Speed/Throughput: Includes lifting speeds, horizontal travel speeds (e.g., crane traversing, AGV velocity), and overall cycle times for completing handling tasks. Directly impacts productivity and the ability to keep pace with production.¹
• Capital Cost (CAPEX): The initial investment required for purchasing and installing the equipment and necessary infrastructure (e.g., crane runways, AGV guidance systems, WMS software).³ Costs can range dramatically from basic manual aids to fully automated robotic systems.
• Operating Cost (OPEX): Ongoing expenses, including labor (operators, maintenance staff), energy consumption (electricity, fuel), spare parts, and routine maintenance.⁵ Automation often aims to reduce labor costs but may involve different energy and maintenance profiles.
• Safety Features & Risk Profile: The inherent safety design of the equipment, the availability and effectiveness of integrated safety systems (e.g., overload protection, anti-collision sensors, emergency stops, guarding), and the residual risks associated with its operation.¹
• Flexibility & Adaptability: The system’s ability to handle variations in coil size, weight, or type; the ease with which workflows or travel paths can be modified; and its suitability for adapting to future changes in production requirements or facility layout.²
• Space Requirements/Footprint: The physical space needed for the equipment to operate, including required aisle widths, overhead clearance (headroom), and floor area for storage or maneuvering.⁵
• Damage Prevention Capability: The degree to which the system inherently protects coils from mechanical damage (scratches, dents, edge damage) or contributes to maintaining a protective environment.¹
• Maintenance Requirements: The complexity, frequency, and cost associated with maintaining the equipment in safe and reliable working order.⁵
• Integration Capability: The ease and effectiveness with which the system can be integrated with other plant control systems, such as MES or WMS, for data exchange and coordinated operation.⁷

B. System Comparison Examples:

• Overhead Cranes vs. AGVs (Internal Transport): Overhead cranes offer unparalleled high lifting capacity and efficient coverage over large rectangular areas (bays) but represent fixed infrastructure with limited flexibility outside their designated runway.¹ AGVs provide exceptional routing flexibility, can navigate complex paths between bays, offer scalability (adding more vehicles), and provide system redundancy, but typically have lower individual lifting capacities (if any) and rely on suitable floor conditions.²¹ Cranes excel at primary heavy lifting and stacking within bays, while AGVs are better suited for flexible, point-to-point horizontal transport, especially across multiple bays or in areas without crane access.
• C-Hooks vs. Coil Grabs (Lifting): C-hooks are mechanically simple, robust, lower cost, and generally offer very high capacity, but require significant side clearance for operation.¹ Coil grabs are more complex and costly but offer versatility in handling different coil sizes and orientations, require less side clearance (allowing denser storage), and are better suited for vertical stacking.⁵ The choice depends heavily on space constraints, coil variability, and budget.
• Mechanical Lifters vs. Magnets (Lifting): Magnetic lifters (especially EPMs) offer superior damage prevention (non-contact) and enhanced safety (hold load during power loss) but come with a very high capital cost and specific power requirements.¹ Mechanical lifters (hooks, grabs) are significantly cheaper but involve physical contact, carrying a higher inherent risk of surface damage.¹¹ Magnets are ideal for high-value, sensitive coils or where space is extremely limited.
• Truck vs. Rail (External Transport): Trucks provide greater flexibility in routing and scheduling, offering faster transit times for shorter to medium distances and direct door-to-door service.³⁴ Rail transport offers substantial cost and fuel efficiency advantages for moving large volumes over long distances but is constrained by the need for rail access at both ends and typically involves longer overall transit times.³

C. Selection Considerations:

The optimal system choice depends on a thorough assessment of the specific operational context:

• Facility Layout & Existing Infrastructure: The physical plant layout, ceiling heights, floor conditions, and existing equipment (e.g., crane runways) heavily influence the feasibility and cost-effectiveness of different options.⁴
• Coil Characteristics: Weight, dimensions, material sensitivity, and value dictate required equipment capacity, lifting interface (hook, grab, magnet), and the necessary level of damage prevention measures.¹
• Throughput & Cycle Time Requirements: High-volume, fast-paced operations often necessitate automated systems with high operational speeds to meet production demands.²
• Budgetary Constraints: Both initial capital expenditure and long-term operating costs must be considered when evaluating different technologies.³
• Safety Priorities and Risk Tolerance: The inherent risks of the environment and the organization’s safety culture will influence the priority placed on automation and advanced safety features.⁴⁶
• Future Scalability and Flexibility: The need for the system to accommodate potential future increases in production volume or changes in product mix or facility layout favors more adaptable solutions like AGVs or modular systems.⁶²

The process of selecting a steel coil handling and transport system is evidently a complex optimization exercise. It involves balancing numerous, often competing, factors such as initial cost versus long-term operating efficiency, speed versus safety, and fixed infrastructure capacity versus flexible automation.¹ There is rarely a single "universally best" solution; instead, the goal is to identify the system or combination of systems that provides the "best fit" for the unique requirements and priorities of a specific operation.

While capital cost is invariably a significant consideration ³, a purely cost-driven decision can be short-sighted. The potentially enormous costs associated with safety incidents—including injuries, fatalities, equipment damage, production downtime, legal liabilities, and reputational harm ³⁰—and the significant value lost through product damage (scratches, dents, corrosion rendering coils unusable) ²⁸ must be factored into the equation. These downstream costs can often justify a higher initial investment in systems that offer enhanced safety (e.g., automation reducing human exposure ²⁴, EPM magnets preventing load drops ¹³) or superior product protection (e.g., non-contact handling ¹³, precise automated placement, appropriate packaging systems ⁵⁶). Evaluating systems based on total cost of ownership and risk mitigation, rather than just upfront price, leads to more robust and sustainable operational decisions.

X. Conclusion and Recommendations

The handling and transport of steel coils are critical, high-stakes operations within the steel industry and related manufacturing sectors. This analysis has highlighted the specialized nature of the equipment required, the paramount importance of rigorous safety protocols and damage prevention measures, the diverse technological solutions available—ranging from basic mechanical devices to sophisticated automated systems—and the increasing role of data integration and advanced technologies.

Key findings underscore the necessity of purpose-built lifting devices (C-hooks, grabs, magnets, specialized forklift attachments) and transport mechanisms (cranes, conveyors, AGVs, specialized road/rail/sea carriers). Safety remains a dominant concern due to the inherent hazards associated with heavy, potentially unstable loads and high-tension banding; adherence to regulations (OSHA, FMCSA, IMO) and industry best practices (AIST) is crucial. Preventing costly damage through careful handling, appropriate packaging (wrapping, strapping, edge protection, dunnage), and controlled environmental conditions is equally vital for maintaining product value. The unmistakable trend is towards increased automation, robotics, sensor technology, and integration with WMS and IoT platforms, driven by the pursuit of enhanced efficiency, safety, quality consistency, and operational flexibility. Selecting the optimal system involves a complex trade-off analysis based on specific operational needs, coil characteristics, facility constraints, and budget, considering total cost of ownership and risk.

Based on this comprehensive analysis, the following high-level recommendations are proposed for organizations involved in steel coil handling and transport:

1. Prioritize a Proactive Safety Culture: Move beyond mere compliance. Implement comprehensive safety programs grounded in thorough, task-specific hazard assessments.⁴³ Develop, document, and rigorously enforce safe work procedures for all handling activities, particularly high-risk tasks like banding and lifting.⁴² Invest in ongoing, effective training for all personnel.⁴⁶ Specify and utilize equipment with advanced safety features (e.g., overload protection, anti-sway, collision avoidance) and ensure consistent use of appropriate PPE.⁴⁶ Regularly review incident data and near-misses to continuously improve safety performance.⁴⁸
2. Implement a Multi-Layered Damage Prevention Strategy: Treat damage prevention as a holistic process. Select handling equipment interfaces (padded hooks, non-contact magnets, sleeved mandrels) appropriate for the coil’s surface sensitivity.¹³ Enforce careful, smooth operating practices.³⁰ Implement robust packaging protocols tailored to the coil type, transport mode, and duration, including appropriate wrapping, strapping, edge protection, and moisture control (VCI, desiccants).⁵⁴ Ensure storage areas are clean, dry, and utilize proper dunnage or racking systems.⁴⁷
3. Evaluate Automation Strategically Based on Total Value: Assess opportunities for automation (automated cranes, AGVs, robotic handling, automated packaging) not just on potential labor savings, but on their combined impact on safety (reducing human exposure), efficiency (throughput, 24/7 operation), quality (consistency, reduced damage), and long-term operating costs.⁴⁵ Consider the total cost of ownership, including maintenance and integration, and the cost of not automating in terms of safety risks and potential inefficiencies.
4. Leverage Data for Optimization and Visibility: Implement or enhance Warehouse Management Systems (WMS) to manage inventory, optimize storage, and coordinate automated handling tasks.⁷ Explore the integration of IoT sensors on equipment and potentially assets to gain real-time data on operations, equipment health, and material flow.²⁵ Utilize data analytics to identify bottlenecks, predict maintenance needs, improve energy efficiency, and make informed decisions to continuously improve logistics performance.⁵¹
5. Adopt an Integrated Systems Approach: View the entire coil handling process—from production line exit through processing, storage, packaging, and shipment—as an interconnected system.² Optimize the flow between stages, ensuring seamless and efficient handoffs between different pieces of equipment (e.g., crane to AGV, conveyor to packaging line). Avoid optimizing individual components in isolation if it creates bottlenecks elsewhere.
6. Maintain Awareness of Technological and Regulatory Developments: The field of material handling, automation, and safety regulations is constantly evolving. Stay informed about new technologies (e.g., advancements in robotics, sensors, AI), emerging best practices (e.g., through industry associations like AIST), and changes in relevant standards and regulations (OSHA, FMCSA, ISO, IMO) to ensure operations remain safe, efficient, and compliant.


   Works cited
