Understanding the Rotate Arm Stretch Wrapper: Technology, Applications, and Efficiency

A Rotate Arm Stretch Wrapper represents a sophisticated solution in packaging automation, specifically engineered for securing palletized goods using stretch film. This technology significantly enhances load stability and safety during transportation and storage. Unlike traditional turntable wrappers where the pallet spins, this machine features a rotating arm that orbits around a stationary pallet. This design is particularly advantageous for heavy, unstable, or irregularly shaped loads that might shift or collapse if spun on a turntable.

The rotating arm mechanism meticulously applies stretch film according to pre-programmed specifications, ensuring even distribution, adjustable tension control, and precise overlap. Modern rotary arm wrappers often incorporate advanced technologies such as Programmable Logic Controllers (PLCs) with Human-Machine Interfaces (HMIs), sophisticated sensors for load height detection, and pre-stretch units capable of elongating the film significantly. These features optimize film consumption, minimize waste, adapt the wrapping cycle to diverse load profiles, and boost overall operational throughput within logistics and manufacturing facilities.

1. Core Operating Principle: The Rotating Arm Advantage

The defining characteristic of this machine is its overhead rotating arm equipped with the film carriage system. Here’s a breakdown of its operation:

1. Load Positioning: The palletized load is placed within the wrapping zone, typically via forklift or conveyor system. The load remains stationary throughout the wrapping process.
2. Cycle Initiation: An operator or automated system initiates the wrapping cycle via the control panel (HMI).
3. Arm Rotation & Film Application: The rotating arm begins to orbit the stationary pallet, dispensing stretch film from the carriage. The carriage usually moves vertically along a mast to cover the entire height of the load.
4. Pre-Stretch Mechanism: Integrated powered pre-stretch rollers elongate the film (often by 200-300% or more) before it's applied to the load. This maximizes film yield, reduces packaging costs, and improves load containment force.
5. Wrapping Parameters: The PLC controls variables like arm rotation speed, film tension, number of top/bottom wraps, film overlap percentage, and vertical carriage speed, allowing for tailored wrap patterns for different product requirements.
6. Film Cut & Seal: Upon cycle completion, automated systems typically clamp, cut, and seal the film tail to the load, preparing the machine for the next pallet.

This stationary load approach is crucial for industries handling fragile, very heavy, or unstable products where the centrifugal force of a turntable wrapper would be detrimental.

2. Key Technical Specifications & Features (Illustrative Example)

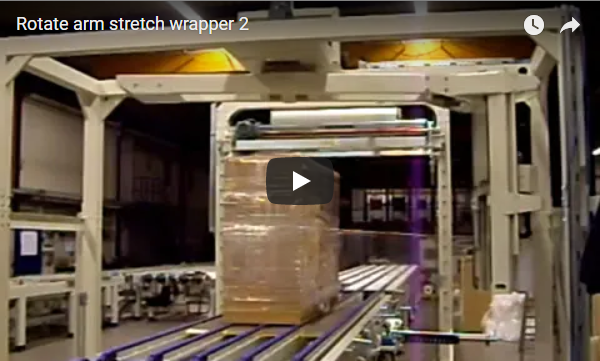

Please Note: The parameters listed below are indicative of common configurations and may not precisely match the specific equipment shown in the video. For exact specifications tailored to your application, direct consultation is recommended.

• Machine Type: Options range from Semi-Automatic (requiring operator initiation and film attachment/cutting) to Fully-Automatic (integrating with conveyor systems for seamless operation).
• Typical Throughput: Varies significantly based on configuration (e.g., 30-
• Rotational Speed: Up to 35 RPM (Revolutions Per Minute) or higher, influencing cycle time.
• Maximum Load Height: Commonly up to 2400mm (approx. 94 inches), with taller options available.
• Maximum Load Weight: Often unlimited in principle as the load sits directly on the floor or conveyor, unlike turntable limits. Practical limits depend on conveyor/floor capacity. A nominal capacity like 2000 kg (4400 lbs) might refer to associated conveyor limits.
• Maximum Load Dimensions (LxW): Typically accommodates standard pallets like 1200mm x 1200mm (48"x48"), with larger envelope options.
• Film Pre-Stretch Capability: Standard 250% powered pre-stretch (meaning 1 meter of film becomes 3.5 meters), with options for higher percentages, significantly reducing film costs per pallet.
• Control System: PLC (e.g., Siemens, Allen-Bradley) with intuitive HMI Touchscreen for parameter setting, diagnostics, and recipe storage.
• Power Requirement: Varies by region and configuration (e.g., 480V/3Ph/60Hz North America, 400V/3Ph/50Hz Europe). Example given: 220V, single phase (less common for industrial wrappers, typically 3-phase).
• Safety Mechanisms: Essential features include emergency stop buttons, safety fencing or light curtains around the wrapping zone, rotation arm obstruction sensors, and clear visual/audible alarms.
• Film Delivery System: Easy-load film carriage ("Simple and quick load system") minimizes downtime during roll changes.
• Construction: Robust, powder-coated steel frame for durability in industrial environments.
• Operating Noise Level: Generally maintained at or below ≤75 dB for workplace safety.
• Compliance Standards: Often designed to meet CE (Europe), UL (North America), ISO 9001, or other relevant regional/quality standards.
• Typical Warranty: Manufacturer-dependent, often 1-2 years on non-wear parts.

3. Operational Benefits & Efficiency Gains

Investing in a rotate arm stretch wrapper translates to tangible improvements:

• Enhanced Load Security: Superior containment force compared to manual wrapping, reducing product damage during transit.
• Increased Throughput: Significantly faster wrapping cycles than manual methods or less advanced machinery.
• Optimized Film Consumption: Powered pre-stretch systems maximize film yield, leading to substantial cost savings on consumables.
• Consistency: Automated control ensures every pallet is wrapped to the same specification, improving quality control.
• Labor Savings: Reduces manual labor requirements for wrapping, freeing up personnel for other tasks.
• Improved Safety: Handles heavy/unstable loads securely and incorporates safety features to protect operators.
• Versatility: Can adapt to various load sizes, shapes, and weights with programmable settings.

4. Industry Applications: Solving Specific Packaging Challenges

Rotate arm wrappers are invaluable across numerous sectors:

1. Beverage Industry: Ensuring Stability During Transportation
   Large pallets of bottles or cans are inherently unstable. A rotate arm wrapper applies consistent, high-tension film containment without spinning the load, preventing shifting, vibration damage, breakage, and leakage during transit. This ensures product integrity upon arrival at distribution centers and retailers, safeguarding brand reputation and minimizing loss.

2. Pharmaceutical Distribution: Maintaining Cleanliness and Containment
   The pharmaceutical supply chain demands strict adherence to cleanliness and security. Rotate arm wrappers provide a tight, secure seal around palletized medicines and healthcare products, protecting them from dust, moisture, and potential tampering. This helps maintain product sterility and efficacy, ensuring compliance with stringent health regulations (e.g., FDA, EMA).

3. Construction and Building Materials: Enhancement of Load Security
   Heavy, abrasive, and often irregularly shaped materials like bagged cement, bricks, tiles, or lumber require robust packaging. The rotate arm wrapper excels at unitizing these challenging loads, applying strong film layers that prevent shifting and protect against weather conditions on job sites or during transport. This secure wrapping is vital for safety and preventing costly material damage.

4. Food Processing: Handling Perishables and Diverse Packaging
   From boxes of frozen goods to stacked crates of fresh produce, the food industry benefits from the stable wrapping platform. It prevents product damage caused by load shifting and allows for customized wrap patterns suitable for different packaging types and temperature requirements.

5. Logistics & Distribution Centers: High-Volume Wrapping
   In busy hubs handling diverse goods, the speed, reliability, and ability of rotary arm systems (especially fully automatic ones integrated with conveyors) to handle varied pallet profiles make them essential for maintaining efficient workflow and minimizing bottlenecks.

5. Considerations for Implementation & Operational Experience

• Load Characteristics: Carefully assess your typical load profiles – weight, stability, dimensions, and required throughput – to select the right machine configuration (arm speed, mast height, options).
• Space Requirements: Rotary arm wrappers generally require a larger operational footprint than turntable models due to the arm's swing radius. Ensure adequate floor space and safety clearances.
• Automation Level: Decide between semi-automatic (operator dependent) and fully-automatic (integrated, higher initial cost but maximized throughput and labor savings) based on volume and existing infrastructure.
• Film Quality: Using the correct type and quality of stretch film is crucial for maximizing the benefits of the pre-stretch system and ensuring proper load containment. Consult with film suppliers.
• Maintenance: Regular preventive maintenance (cleaning sensors, checking rollers and chains, lubricating moving parts) is key to longevity and reliable performance. Follow manufacturer guidelines.
