In today's demanding industrial landscape, particularly within the sheet metal and building materials sectors, efficient and protective packaging isn't just an option—it's a necessity. Handling long, bulky, or irregularly shaped items like metal sheets, extrusions, pipes, or lumber presents unique challenges. Traditional packaging methods often fall short, leading to potential damage during transit and storage, increased labor costs, and slower turnaround times. Enter the Horizontal Orbital Ring Stretch Wrapper: a specialized automated packaging solution designed to tackle these very issues head-on.
1. Understanding the Horizontal Orbital Ring Stretch Wrapper
At its core, this machine employs a rotating ring mechanism equipped with a stretch film dispenser. Unlike conventional turntable wrappers where the load rotates, here the product remains stationary (or is fed through on conveyors) while the ring orbits around it, applying stretch film in a tight, secure spiral pattern. This method offers several distinct advantages:
- Superior Load Stability: The orbital wrapping technique ensures consistent film tension around the entire length of the product, effectively unitizing bundles or protecting individual items.
- Enhanced Protection: A complete cocoon of stretch film shields products from moisture, dust, dirt, and surface abrasion – crucial for maintaining the quality of sensitive materials like polished sheet metal or finished extrusions.
- Efficiency and Speed: Automation significantly reduces manual labor requirements and speeds up the packaging process compared to hand wrapping or other semi-automatic methods.
- Versatility: These machines can typically handle a wide range of product lengths and cross-sectional dimensions, making them adaptable to diverse inventories.
From my experience observing these machines in various facilities, the transition from manual or semi-automated wrapping to a fully automated horizontal orbital system often results in a dramatic improvement in packaging consistency and throughput, directly impacting the bottom line.
2. Key Technical Specifications (Example Model: HORIZON-HR100)

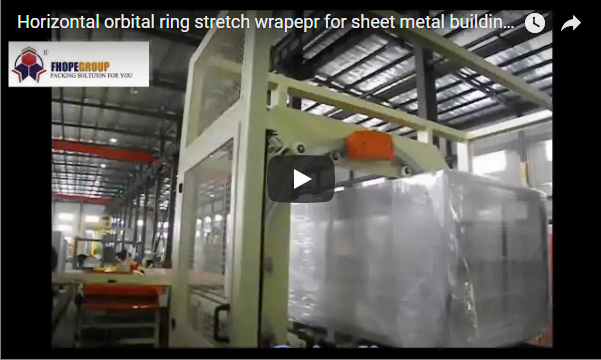

Please note: The parameters listed below are indicative of a typical machine in this category (Model HORIZON-HR100, manufactured in 2023) and may not precisely match the equipment shown in the video. For exact specifications tailored to your needs, please contact us directly.
- Machine Type: Horizontal Orbital Ring Stretch Wrapper
- Condition: New
- Maximum Product Length: Effectively Unlimited (conveyor-dependent)
- Ring Diameter: 2400mm (Determines the maximum cross-sectional dimension of the product)
- Wrapping Speed: Up to 60 rotations per minute (Influences overall throughput)
- Power Requirement: 380V, Three-Phase (Standard industrial power)
- Approx. Machine Dimensions: Length: 4000mm; Width: 3200mm; Height: 2200mm
- Conveyor Speed: Adjustable, 0-15 meters per minute (Allows synchronization with production lines)
- Film Compatibility: Standard Polyethylene (PE) Stretch Film
- Film Roll Width: Up to 500mm
- Typical Load Capacity: Up to 1000kg (Varies based on conveyor system)
- Safety Features: Emergency shut-off buttons, safety interlocks/sensors
- Control System: Integrated PLC (Programmable Logic Controller) with HMI (Human-Machine Interface) touch screen for ease of operation and parameter adjustment.
- Warranty: Standard 2 years
- Operational Mode: Fully Automatic
Understanding these specifications is key. For instance, the ring diameter directly impacts the largest bundle or item you can wrap, while the adjustable conveyor and wrap speeds allow fine-tuning for different product types and desired packaging tightness.
3. Real-World Applications & Benefits in Target Industries
The true value of the Horizontal Orbital Ring Stretch Wrapper shines in its practical applications:
3.1 Mastering Secure Packaging for Large Sheet Metal Coils and Profiles
The metal fabrication and processing industry frequently handles large, heavy, and often sensitive sheet metal coils, plates, or long profiles. This wrapper provides:
- Damage Prevention: A tight, multi-layered wrap protects edges and surfaces from scratches, dents, and corrosion-inducing moisture during handling and shipping. We've seen clients drastically reduce damage claims after implementation.
- Handling Efficiency: Securely wrapped bundles are easier and safer to handle with forklifts or cranes.
- High Throughput: Essential for high-volume manufacturers needing to keep pace with production output. The machine's speed ensures packaging doesn't become a bottleneck.
3.2 Ensuring Protection for Delicate Aluminum Extrusions
Aluminum extrusions, widely used in construction, automotive, and manufacturing, often have critical surface finishes or complex shapes susceptible to damage. This machine offers:
- Consistent Surface Protection: Uniform film application prevents scratches, scuffs, and contamination, preserving the aesthetic and functional integrity of the extrusions.
- Bundle Stability: Keeps multiple extrusions tightly bundled, preventing shifting and potential bending or warping during transit.
- Reduced Packaging Waste: Optimized film usage compared to manual methods.
3.3 Streamlining Logistics in Building Material Warehousing & Distribution
Warehouses managing diverse building materials like PVC pipes, lumber, conduit, rods, and panels benefit significantly:
- Automation & Labor Savings: Frees up personnel from tedious and physically demanding manual wrapping tasks.
- Improved Space Utilization: Tightly wrapped bundles are more compact and stable for stacking, optimizing warehouse space.
- Enhanced Order Fulfillment: Faster preparation of goods for shipment leads to improved operational efficiency and customer satisfaction. Witnessing the speed difference in a busy distribution center is truly impressive.
4. Why Invest in Horizontal Orbital Wrapping Technology?
Beyond the specific applications, adopting this technology offers compelling strategic advantages:
- Cost Reduction: Minimizes product damage costs, reduces labor expenditure, and optimizes stretch film consumption.
- Increased Productivity: Significantly higher packaging speeds compared to manual or semi-automatic methods.
- Improved Product Presentation: Professional, clean, and secure packaging enhances brand image.
- Enhanced Worker Safety: Automates a physically demanding task, reducing risks of strains and injuries.
5. Integration and Operational Insights
Modern Horizontal Orbital Wrappers are designed for relatively seamless integration into existing production or packaging lines. Key features often include:
- User-Friendly Controls: PLC and HMI interfaces allow operators to easily set parameters like wrap counts, tension, and conveyor speed.
- Reliability: Built with robust components designed for continuous industrial operation.
- Maintenance: Typically involves routine checks and lubrication, with clear diagnostics available via the HMI.
While the initial investment requires consideration, the observed ROI, driven by labor savings, damage reduction, and increased throughput, often makes it a highly justifiable capital expenditure for businesses in the sheet metal and building materials sectors.
Learn more about our range of Horizontal Wrapping Machines
Ready to explore how a Horizontal Orbital Ring Stretch Wrapper can optimize your packaging operations? Contact us for a detailed consultation and customized quote based on your specific product requirements.
