Automatic Rotary Arm Pallet Wrapping Machine with Top Sheet Covering: Enhancing Load Protection and Efficiency

In today's demanding logistics and distribution environments, ensuring palletized goods arrive securely and undamaged is paramount. An Automatic Rotary Arm Pallet Wrapping Machine equipped with a Top Sheet Covering system represents a significant advancement in packaging automation, offering comprehensive protection against environmental factors and handling stresses. This sophisticated equipment integrates the high-speed efficiency of a rotary arm wrapper with the added benefit of applying a protective top layer, crucial for maintaining product integrity during storage and transit.

1. Understanding the Technology: How Rotary Arm Wrappers with Top Sheets Operate

Unlike traditional turntable wrappers where the pallet spins, a rotary arm pallet wrapper keeps the load stationary. This is particularly advantageous for wrapping tall, lightweight, or unstable loads that might shift or collapse if rotated at high speeds. The stretch film carriage revolves around the stationary pallet on a robust rotary arm.

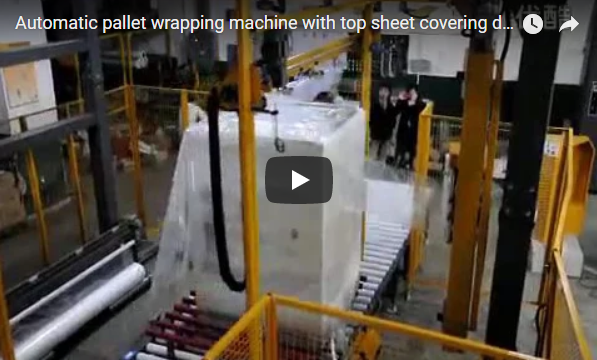

The integration of a top sheet dispenser adds another layer of functionality. Typically positioned near the wrapping station, this unit automatically dispenses a sheet of film or other protective material (like polyethylene) over the top of the pallet before or during the initial stages of the wrapping cycle. This sequence ensures the top sheet is secured by the subsequent layers of stretch film, creating a five-sided protective cocoon around the product. Key operational aspects include:

• Load Sensing: Advanced sensors detect the height and profile of the pallet for optimized film usage and wrap patterns.
• Precision Film Delivery: Sophisticated pre-stretch systems (often exceeding 300%) elongate the film, maximizing yield and ensuring high load containment force with minimal material consumption.
• Automated Cycles: Programmable Logic Controllers (PLCs) manage the entire sequence – top sheet application, wrapping, film clamping, cutting, and wiping – requiring minimal operator intervention.




  2. Key Technical Specifications (Model ARAPWTSC-3000 Example)

Please note: The parameters listed below are indicative of a typical model. For exact specifications tailored to your application, direct consultation is recommended.

• Machine Type: Automatic Rotary Arm Pallet Wrapper with Integrated Top Sheet Dispenser
• Model Reference: ARAPWTSC-3000
• Typical Year of Manufacture: 2023 (or latest model)
• Maximum Load Height: 2400mm (Customizable)
• Maximum Load Dimensions (L x W): Varies based on arm radius (e.g., 1200mm x 1200mm)
• Maximum Load Weight: Often unlimited as load is stationary on conveyor/floor; system handles arm movement. Typically rated for standard pallet loads (e.g., up to 2500kg capacity of associated conveyors).
• Film Delivery System: Powered Pre-stretch Carriage (Ratio adjustable, e.g., up to 350%)
• Top Sheet Material: PE Film or other compatible materials
• Top Sheet Roll Diameter/Width: Customizable (e.g., Diameter up to 300mm, Width up to 1800mm)
• Wrapping Speed (Rotary Arm): Up to 25 RPM (Variable, application-dependent)
• Throughput: Up to 40-60 loads per hour (Depending on load size and wrap pattern)
• Power Supply: Typically 3-Phase (e.g., 480V/60Hz or 400V/50Hz) - Original spec (220V, 50Hz, single phase) may apply to specific smaller models or configurations.
• Control System: PLC with HMI Touch Screen Interface
• Safety Features: Perimeter fencing, light curtains, emergency stops, enclosed arm mechanism.
• Approximate Machine Weight: 1000kg - 2500kg (Varies significantly with configuration)
• Approximate Footprint (L x W x H): Varies (e.g., 4000mm x 2500mm x 2800mm, excluding safety fencing/conveyors)
• Compliance: CE Marking, ISO 9001 adherence

3. Operational Advantages and ROI

Investing in an automatic rotary arm wrapper with top sheeting delivers tangible benefits:

• Superior Load Protection: The top sheet provides crucial defense against dust, moisture, debris, and potential tampering, essential for sensitive goods or outdoor storage.
• Enhanced Load Stability: Consistent, high-tension wrapping secures the load effectively, reducing shifting and product damage during handling and shipping.
• Increased Throughput: Automation significantly speeds up the wrapping process compared to manual or semi-automatic methods, boosting overall line efficiency.
• Optimized Film Consumption: Precise pre-stretching technology minimizes film usage per pallet, leading to significant cost savings on consumables.
• Improved Worker Safety: Automating the wrapping process reduces manual labor requirements and associated risks of injury from repetitive motion or maneuvering around moving loads. Stationary load wrapping further enhances safety for unstable products.
• Reduced Labor Costs: Reallocating labor from manual wrapping tasks to more value-added activities improves operational efficiency.
• Positive ROI: The combination of reduced damage, lower material costs, increased speed, and optimized labor often results in a rapid return on investment. From our experience working with diverse distribution centers, the integration of top sheeting drastically reduces claims related to environmental damage during transit.




  4. Real-World Applications Across Industries

The versatility of this system makes it invaluable in various sectors:

4.1. Construction Material Distribution

For industries handling bulky items like bricks, tiles, cement bags, or fixtures, maintaining product integrity from the yard to the job site is critical. The Automatic Rotary Arm Pallet Wrapping Machine with Top Sheet Covering provides robust packaging. The top sheet shields materials from rain, dust, and site debris, while the secure wrap prevents load shifting during transport. This dual protection minimizes costly damage and ensures materials arrive project-ready, enhancing customer satisfaction.

4.2. Food and Beverage Sector

Hygiene and contamination prevention are non-negotiable in the food and beverage industry. This machine excels at wrapping palletized goods such as bottled water, canned goods, bagged ingredients, and finished snack products. The top sheet forms an essential barrier against dust, pests, and airborne contaminants in warehouses and during shipping, helping producers comply with stringent food safety regulations and maintain brand reputation.

4.3. Pharmaceutical Logistics

The pharmaceutical supply chain demands exceptional protection for high-value, sensitive products. An automatic rotary arm wrapper with top sheet capability ensures that palletized shipments of medications, medical devices, or laboratory supplies are securely contained and shielded from environmental factors like dust and moisture. This level of protection is vital for preserving product efficacy, ensuring patient safety, and meeting regulatory compliance standards throughout distribution.

5. Maximizing Performance: Operational Best Practices

To fully leverage the capabilities of this advanced machinery, consider these points:

• Film Selection: Choosing the right type, gauge, and quality of stretch film is critical for optimal load containment and cost-efficiency. Consult with suppliers or packaging experts.
• Preventative Maintenance: Adhering to the manufacturer's recommended maintenance schedule is crucial for minimizing downtime and ensuring long-term reliability. Regular checks on rollers, cutters, and safety systems are essential.
• Operator Training: Ensure personnel are properly trained on machine operation, safety procedures, film loading, and basic troubleshooting to maximize uptime and efficiency.
• Integration: Proper integration with upstream and downstream conveyor systems is key to achieving seamless automated workflow.




  6. Conclusion: Investing in Advanced Pallet Protection

The Automatic Rotary Arm Pallet Wrapping Machine with Top Sheet Covering is more than just a packaging machine; it's a strategic investment in product integrity, operational efficiency, and supply chain reliability. By providing superior five-sided protection for palletized goods, particularly for unstable loads or products requiring defense against environmental elements, this technology helps businesses reduce damages, lower costs, enhance safety, and meet the ever-increasing demands of modern distribution.

For more detailed information or to discuss your specific application needs, please contact info@fhopepack.com.
