In the production and distribution of steel tubes and pipes, efficient and safe handling are paramount. Manufacturers utilize comprehensive steel tube packing lines to automate the organization, bundling, strapping, and storage of steel tubes, preparing them efficiently for transport. Each component within this automated pipe packaging system plays a vital role, ensuring a seamless flow from the end of the production line to the storage or shipping area.
This guide details the primary components of a modern steel tube packing line, explaining how each piece of equipment contributes to an optimized, safe, and effective workflow. Understanding these functions allows manufacturers to enhance their pipe handling processes, potentially reduce operational costs, and boost overall productivity. Let's examine the essential parts of the steel tube and pipe packing process.
1. Steel Tube Gathering and Alignment Station: Organizing for Efficiency

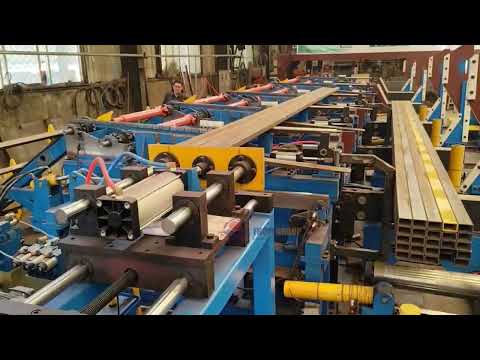

The 스틸 튜브 모임 테이블 (or alignment station) marks the beginning of the automated packing process. Its primary function is to collect steel tubes directly from the production output and organize them for the subsequent bundling stage.
- 기능: This station collects tubes, aligns them precisely, and arranges them into a layer or row, ensuring a smooth transition into the bundling machine.
- 사용자 지정 : Gathering tables can often be configured to handle various tube diameters (OD) and lengths, offering operational flexibility.
- 주요 구성 요소 :
- Tube Lifter: Lifts and positions individual tubes.
- 정렬 메커니즘: Ensures tubes are correctly oriented (e.g., parallel, ends aligned) to prevent jams and ensure uniform bundle formation. This step is critical for high-speed lines where misalignments cause significant disruptions.
- 이점: Automating the gathering and alignment process minimizes manual handling, reduces the risk of cosmetic damage (scratches, dents), prevents bottlenecks, and prepares tubes for efficient bundling.
2. Steel Tube Bundling Machine: Creating Secure, Stable Bundles
Once aligned, the tubes proceed to the 강관 묶음 기계. This core component assembles individual tubes into tightly packed, stable bundles, typically in hexagonal or square shapes, based on operational requirements.
- 기능: Takes organized tubes and forms them into predefined bundle shapes and counts.
- 메커니즘 : Often utilizes pneumatic or mechanical systems to form the bundle shape and manage layers. Advanced systems can automatically adjust for different tube ODs.
- 번들 모양:
- 육각형: Offers excellent stability and interlocking for secure handling.
- Square/Rectangular: Can optimize space utilization for storage and transport.
- 이점: Automated bundling significantly reduces labor costs and processing time compared to manual methods. It ensures consistent bundle density and shape, enhancing stability and safety during subsequent handling and transport, while minimizing the risk of product damage.
3. Steel Tube Bundle Carrier: Automated Bundle Transportation
After formation, the completed bundle needs to be moved to the next station, typically strapping. The 강관 번들 캐리어 handles this transfer efficiently and safely.
- 기능: Transports newly formed bundles from the bundling machine to the strapping station or an intermediate conveyor.
- 디자인 : Usually consists of a motorized cart, conveyor system, or transfer arms designed to handle the weight and dimensions of the bundles securely. Track-based systems are common for precise movement.
- 이점: Automates the transfer process, further reducing manual labor requirements and associated safety risks (e.g., strains, crush injuries). Ensures smooth workflow continuity, prevents damage to bundles during transit between stations, and maintains the pace of the packing line.
4. Steel Tube Bundle Strapping Machine: Securing Bundles for Transit

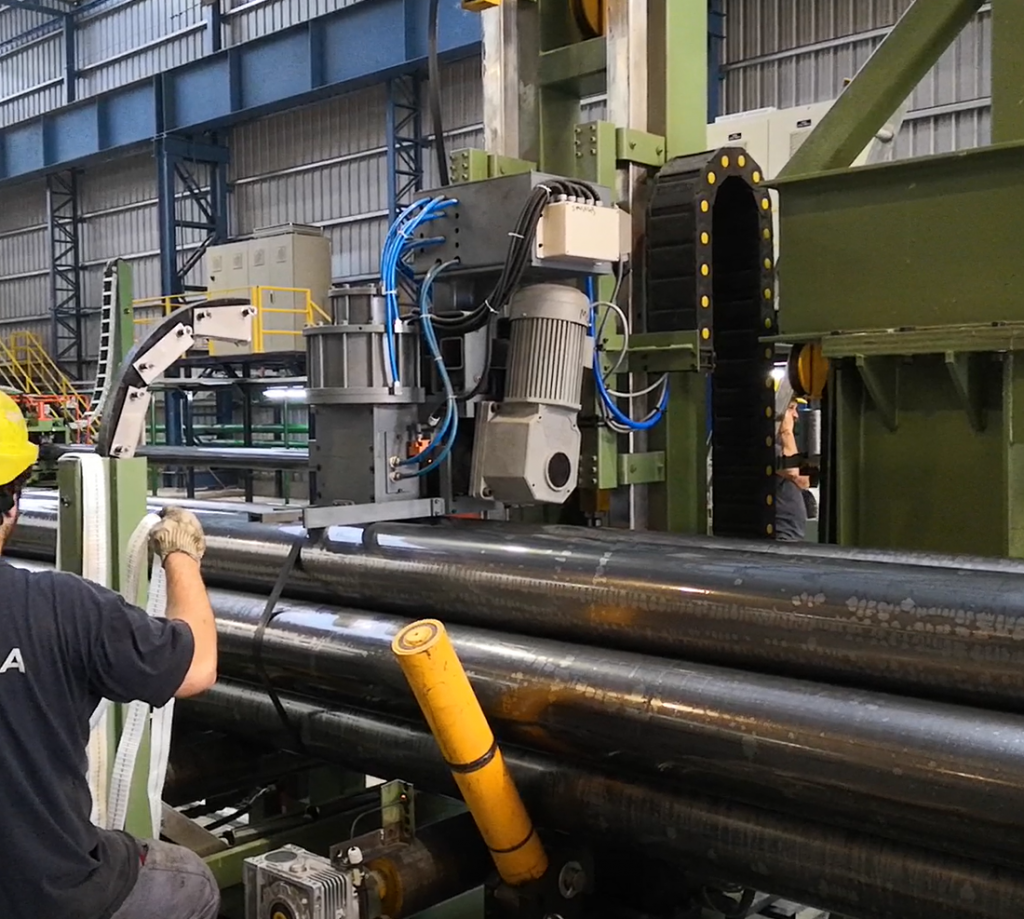

The 강철 튜브 묶음 달아서 기계 is essential for ensuring bundle integrity during storage, handling, and shipping. It applies high-tensile straps around the bundle at designated points.
- 기능: Securely applies steel or plastic (PET/PP) straps around the formed bundles to maintain their shape and prevent tubes from shifting or separating.
- 특징:
- 스트랩 호환성: Can handle various strap materials, widths, and thicknesses.
- Automatic Tensioning: Applies consistent, appropriate tension to each strap for optimal security without damaging the tubes.
- 밀봉 : Automatically seals the strap ends (e.g., via welding, friction seal, or metal seals).
- Multiple Strapping Heads: Allows for simultaneous application of straps at several points along the bundle length for faster processing.
- 이점: Crucial for transport stability and safety. Properly strapped bundles are easier and safer to lift, move, and stack. Automation ensures consistent strapping quality, enhances throughput speed, and reduces manual effort and potential errors associated with manual strapping tools.
5. Bundle Out-feeding and Storage Station: Final Handling and Holding
The 번들 보관소 (or out-feeding system) is the final stage within the automated packing line, managing the bundles after strapping until they are moved to the main storage yard or loaded for shipment.
- 기능: Receives strapped bundles, often via roller conveyors or chain conveyors, and stages them for pickup by forklift or overhead crane. It can also serve as a temporary buffer storage.
- 구성 요소 : May include:
- Out-feeding Conveyors: Transport bundles away from the strapping machine.
- Stacking/Accumulation Areas: Designated zones where bundles can be temporarily stored.
- Weighing Stations (Optional): Integrate weighing scales to record bundle weights for inventory and shipping documentation.
- Marking/Labeling Systems (Optional): Apply labels or markings with production data, customer information, or barcodes.
- 이점: Provides an organized transition from the packing line to final storage or dispatch. Reduces congestion around the packing line. Ensures bundles are handled safely and efficiently during the final movement stages. Optional integration of weighing and labeling enhances logistics management.
6. The Importance of Automation in Modern Pipe Packing Lines
통합 자동화 throughout the steel tube packing line delivers significant advantages:
- 생산성 향상 : Automated systems operate faster and more consistently than manual processes, increasing overall throughput.
- 향상된 안전성: Reduces the need for manual handling of heavy tubes and bundles, minimizing risks of worker injury.
- 향상된 일관성: Ensures uniform bundle quality, alignment, and strapping tension, leading to more stable and secure loads.
- 인건비 절감: Lowers reliance on manual labor for repetitive tasks like gathering, bundling, and strapping.
- 유연성: Modern automated lines can often be programmed to handle different tube sizes, bundle configurations, and strapping requirements with minimal changeover time.
7. Ensuring Quality Control Throughout the Process
품질 관리 remains essential, even with automation. Checks should be integrated at various points:
- 초기 검사: Ensuring tubes entering the line meet quality standards (e.g., straightness, surface condition).
- Bundle Formation Check: Verifying correct tube count and bundle shape.
- Strapping Integrity: Confirming straps are properly tensioned and sealed.
- 최종 검사: A visual check before bundles are moved to storage, ensuring no damage occurred during packing and the bundle is secure for transport.
Implementing robust quality checks ensures that the final packaged product meets customer specifications and arrives safely.
Conclusion: Achieving Efficiency and Safety in Steel Tube Handling
Every component in the 강관 포장 라인—from the initial gathering table to the final storage station—is engineered to contribute to a seamless, efficient, and safe packaging process. The coordinated operation of these automated systems minimizes manual handling, reduces the risk of product damage, optimizes workflow, and ensures bundles are secure for transport. By understanding and investing in well-designed automated packing solutions incorporating essential functions like alignment, bundling, strapping, and controlled movement, steel manufacturers can significantly enhance operational efficiency, improve workplace safety, and maintain high standards of product quality for customer satisfaction.
