Online pallet turntable stretch wrapping machine

Optimizing End-of-Line Packaging: Understanding Online Pallet Turntable Stretch Wrappers

Ensuring palletized products reach their destination securely is a critical final step in many manufacturing and fabrication operations. Damage during transit can lead to significant costs and customer dissatisfaction. An online automatic pallet turntable stretch wrapping machine offers an efficient, reliable solution for stabilizing loads and integrating the wrapping process seamlessly into an automated production line.

How Online Turntable Stretch Wrappers Function

These automated systems are designed to operate with minimal human intervention, typically as part of a larger conveyorized system. The process generally follows these steps:

1. Pallet Infeed: A loaded pallet arrives via an input conveyor and is automatically positioned onto the machine's turntable.
2. Film Attachment: A clamping mechanism securely grips the leading edge of the stretch film roll.
3. Wrapping Cycle Initiation: The turntable begins to rotate at a controlled speed. Simultaneously, the film carriage, which holds the roll of stretch film, travels vertically up the mast.
4. Film Application & Pre-stretch: As the turntable rotates and the carriage moves, film is applied around the load. Crucially, most automatic machines incorporate a powered pre-stretch system. This stretches the film (often between 150% to 300%) before it's applied to the load. Pre-stretching significantly increases film yield (reducing material cost) and enhances load containment force.
5. Top and Bottom Wraps: The machine applies programmed numbers of wraps at the top and bottom of the pallet for extra stability.
6. Film Cut and Seal: Once the wrapping cycle is complete, the machine automatically cuts the film and typically uses a heat sealer or wipe-down arm to secure the film tail to the load.
7. Pallet Outfeed: The turntable stops, and the wrapped pallet is automatically transferred onto an exit conveyor, ready for labeling, storage, or shipping.

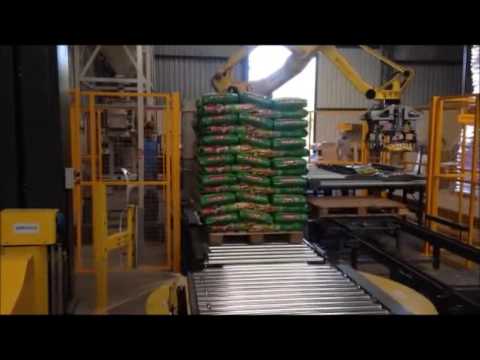

Video: An example of an online pallet turntable stretch wrapper integrated into a production line.

Key Features and Operational Considerations

When evaluating or operating an online turntable stretch wrapper, several features are important:

• Variable Tension Control: Allows adjustment of the film's tightness on the load. This is vital to secure the load effectively without crushing sensitive products.
• Adjustable Wrap Parameters: Control over turntable speed, film carriage ascent/descent speed, the number of top and bottom wraps, and film overlap percentage enables customization for different load types and stability requirements.
• Film Pre-stretch System: Different mechanisms (e.g., fixed ratio gears, variable electronic) offer various levels of film savings and performance. Understanding the pre-stretch percentage is key to material efficiency.
• Automatic Film Cut & Clamp/Wipe System: Essential for true automation, eliminating the need for an operator to manually attach or cut the film after each cycle.
• Turntable Capacity and Size: Must accommodate the maximum dimensions (L x W x H) and weight of the pallet loads being processed.
• Integration Capabilities: The machine's control system (often PLC-based) must effectively communicate with upstream (e.g., palletizers, case packers) and downstream (e.g., labelers, sortation systems) equipment via the conveyor network.
• Safety Features: Standard safety measures include perimeter fencing, light curtains at entry/exit points, emergency stop buttons, and audible/visual alarms.

Benefits of Automated Turntable Stretch Wrapping

Integrating an online turntable stretch wrapper provides several advantages:

• Consistent Load Security: Automated application ensures uniform film placement and tension, significantly reducing the risk of load shifting or collapsing during transit compared to manual wrapping.
• Increased Throughput: These machines can wrap pallets significantly faster than manual or semi-automatic methods, keeping pace with high-speed production lines.
• Reduced Labor Costs: Automation frees up personnel previously assigned to wrapping tasks, allowing them to be redeployed to more value-added activities.
• Optimized Film Consumption: Powered pre-stretch systems can reduce film usage by 50% or more compared to wrapping by hand, leading to substantial material cost savings and reduced environmental impact. (Learn more about film properties at resources like [Link to authoritative plastics/packaging industry association]).
• Improved Workplace Safety: Eliminates the physically demanding and potentially hazardous task of manually walking around pallets with heavy film rolls.

Selecting the Right System

Choosing the appropriate online turntable stretch wrapper depends on factors such as:

• Required throughput (pallets per hour).
• Characteristics of the load (size, weight, stability, shape).
• Available floor space and integration requirements with existing conveyor systems.
• Environmental conditions (e.g., cold storage, dusty environments).
• Specific wrapping needs (e.g., top sheet application for weatherproofing).

Consulting relevant industry standards, such as those from [Link to ASTM International for load stability testing methods], can also provide valuable context.

Conclusion

For fabricators and manufacturers looking to enhance end-of-line packaging efficiency, consistency, and safety, the online automatic pallet turntable stretch wrapper is a proven technology. By automating the process and integrating it seamlessly into the production flow, these machines contribute to lower operating costs, improved product protection, and higher overall productivity. Understanding their operational principles and key features is essential for selecting and utilizing this equipment effectively.
