steel tube packing machine and flow wrapper

steel tube packing machine; stainless steel tube packing line
steel tube packing machine; stainless steel tube packing line

More information: http://www.fhopepack.com/steel-tube-packing-machine.html

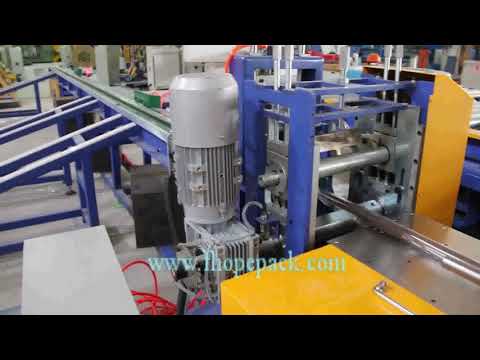

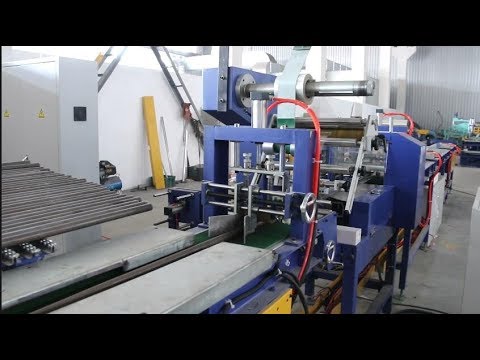

The picture shows the steel tube packaging machine which is a tube flow wrapper work for online tube feeding and bundling.

Pipe OD;20-100mm    Length:1000-6000mm

Following size list, the machine work for all size inside of the list.



1. Automatic steel tube online counting.

2. Automatic steel tube aligning.

3. Manual and automatic mode working for online operation.

4. Automatic flow wrapper and bag making.

5. Automatic bundle strapping and flow wrapper bag filling.

6. Automatic end size and bag trail sealing.

7. program Control by PLC&HMI

8. High packing speed with 10 pipes per time.

9. Indicator alarms automatically when trouble occurs. Trouble can be shown automatically.

 Note: Can be designed according your specification.

TUBE SIZE CHART FOR TUBE MILL NO. 1
TUBE SIZE Weight. Kg/ Mtr
S.NO DIA CLASS OD THICKNESS
1 15 NB 21.3 1.2 0.594558
2 15 NB 21.3 1.4 0.686749
3 15 NB 21.3 1.6 0.776968
4 15 NB 21.3 1.8 0.865215
5 15 NB LIGHT 21.3 2.0 0.95149
6 15 NB MEDIUM 21.3 2.34 1.09363176
7 15 NB HEAVY 21.3 2.88 1.30767264

1 20 NB 26.9 1.20 0.760206
2 20 NB 26.9 1.40 0.880005
3 20 NB 26.9 1.60 0.997832
4 20 NB 26.9 1.80 1.113687
5 20 NB 26.9 2.00 1.22757
6 20 NB LIGHT 26.9 2.11 1.289365085
7 20 NB MEDIUM 26.9 2.34 1.41664536
8 20 NB HEAVY 26.9 2.88 1.70522784

1 25 NB 33.7 1.20 0.96135
2 25 NB 33.7 1.40 1.114673
3 25 NB 33.7 1.60 1.266024
4 25 NB 33.7 1.80 1.415403
5 25 NB 33.7 2.00 1.56281
6 25 NB LIGHT 33.7 2.39 1.846007342
7 25 NB MEDIUM 33.7 2.88 2.18797344
8 25 NB HEAVY 33.7 3.60 2.671074

1 32 NB 42.4 1.20 1.218696
2 32 NB 42.4 1.40 1.41491
3 32 NB 42.4 1.60 1.609152
4 32 NB 42.4 1.80 1.801422
5 32 NB 42.4 2.00 1.99172
6 32 NB LIGHT 42.4 2.39 2.358983702
7 32 NB MEDIUM 42.4 2.88 2.80560384
8 32 NB HEAVY 42.4 3.60 3.443112

1 40 NB 48.3 1.20 1.393218
2 40 NB 48.3 1.40 1.618519
3 40 NB 48.3 1.60 1.841848
4 40 NB 48.3 1.80 2.063205
5 40 NB 48.3 2.00 2.28259
6 40 NB LIGHT 48.3 2.67 3.003161265
7 40 NB MEDIUM 48.3 2.88 3.22445664
8 40 NB HEAVY 48.3 3.60 3.966678

1 50 NB 60.3 1.20 1.748178
2 50 NB 60.3 1.40 2.032639
3 50 NB 60.3 1.60 2.315128
4 50 NB 60.3 1.80 2.595645
5 50 NB 60.3 2.00 2.87419
6 50 NB 60.3 2.30 3.28831
7 50 NB LIGHT 60.3 2.67 3.792947265
8 50 NB MEDIUM 60.3 3.24 4.55715396
9 50 NB HEAVY 60.3 4.05 5.615578125

1 65 NB 76.2 1.20 2.2185
2 65 NB 76.2 1.40 2.581348
3 65 NB 76.2 1.60 2.942224
4 65 NB 76.2 1.80 3.301128
5 65 NB 76.2 2.00 3.65806
6 65 NB 76.2 2.30 4.1897605
7 65 NB 76.2 2.60 4.717024
8 65 NB LIGHT 76.2 2.94 5.316158618
9 65 NB MEDIUM 76.2 3.24 5.82702336
10 65 NB HEAVY 76.2 4.05 7.202914875

1 20X20 SQUARE X 25.4 1.20 0.715836
2 20X20 SQUARE X 25.4 1.40 0.82824
3 20X20 SQUARE X 25.4 1.60 0.938672
4 20X20 SQUARE X 25.4 1.80 1.047132
5 20X20 SQUARE X 25.4 2.00 1.15362
6 20X20 SQUARE X 25.4 2.30 1.3096545
7 20X20 SQUARE X 25.4 2.60 1.461252
8 20X20 SQUARE X 25.4 2.90 1.6084125
9 20X20 SQUARE X 25.4 3.30 1.7977245
10 20X20 SQUARE X 25.4 3.60 1.934532
11 20X20 SQUARE X 25.4 4.00 2.11004

1 25X25 SQUARE X 31.75 1.20 0.903669
2 25X25 SQUARE X 31.75 1.40 1.0473785
3 25X25 SQUARE X 31.75 1.60 1.189116
4 25X25 SQUARE X 31.75 1.80 1.3288815
5 25X25 SQUARE X 31.75 2.00 1.466675
6 25X25 SQUARE X 31.75 2.30 1.66966775
7 25X25 SQUARE X 31.75 2.60 1.8682235
8 25X25 SQUARE X 31.75 2.90 2.06234225
9 25X25 SQUARE X 31.75 3.30 2.31426525
10 25X25 SQUARE X 31.75 3.60 2.498031
11 25X25 SQUARE X 31.75 3.90 2.67735975

1 32X32 SQUARE X 40.76 1.20 1.1701848
2 32X32 SQUARE X 40.76 1.40 1.3583136
3 32X32 SQUARE X 40.76 1.60 1.5444704
4 32X32 SQUARE X 40.76 1.80 1.7286552
5 32X32 SQUARE X 40.76 2.00 1.910868
6 32X32 SQUARE X 40.76 2.30 2.1804897
7 32X32 SQUARE X 40.76 2.60 2.4456744
8 32X32 SQUARE X 40.76 2.90 2.7064221
9 32X32 SQUARE X 40.76 3.30 3.0471837
10 32X32 SQUARE X 40.76 3.60 3.2975784
11 32X32 SQUARE X 40.76 3.90 3.5435361

1 30X30 SQUARE X 38.21 1.20 1.0947558
2 30X30 SQUARE X 38.21 1.40 1.2703131
3 30X30 SQUARE X 38.21 1.60 1.4438984
4 30X30 SQUARE X 38.21 1.80 1.6155117
5 30X30 SQUARE X 38.21 2.00 1.785153
6 30X30 SQUARE X 38.21 2.30 2.03591745
7 30X30 SQUARE X 38.21 2.60 2.2822449
8 30X30 SQUARE X 38.21 2.90 2.52413535
9 30X30 SQUARE X 38.21 3.30 2.83975395
10 30X30 SQUARE X 38.21 3.60 3.0712914
11 30X30 SQUARE X 38.21 3.90

1 40X40 SQUARE X 50.95 1.20 1.471605
2 40X40 SQUARE X 50.95 1.40 1.7099705
3 40X40 SQUARE X 50.95 1.60 1.946364
4 40X40 SQUARE X 50.95 1.80 2.1807855
5 40X40 SQUARE X 50.95 2.00 2.413235
6 40X40 SQUARE X 50.95 2.30 2.75821175
7 40X40 SQUARE X 50.95 2.60 3.0987515
8 40X40 SQUARE X 50.95 2.90 3.43485425
9 40X40 SQUARE X 50.95 3.30 3.87608925
10 40X40 SQUARE X 50.95 3.60 4.201839
11 40X40 SQUARE X 50.95 3.90

1 50X50 SQUARE X 63.69 1.20 1.8484542
2 50X50 SQUARE X 63.69 1.40 2.1496279
3 50X50 SQUARE X 63.69 1.60 2.4488296
4 50X50 SQUARE X 63.69 1.80 2.7460593
5 50X50 SQUARE X 63.69 2.00 3.041317
6 50X50 SQUARE X 63.69 2.30 3.48050605
7 50X50 SQUARE X 63.69 2.60 3.9152581
8 50X50 SQUARE X 63.69 2.90 4.34557315
9 50X50 SQUARE X 63.69 3.30 4.91242455
10 50X50 SQUARE X 63.69 3.60 5.3323866
11 50X50 SQUARE X 63.69 3.90 5.74791165

1 50X25 SQUARE X 47.77 1.20 1.3775406
2 50X25 SQUARE X 47.77 1.40 1.6002287
3 50X25 SQUARE X 47.77 1.60 1.8209448
4 50X25 SQUARE X 47.77 1.80 2.0396889
5 50X25 SQUARE X 47.77 2.00 2.256461
6 50X25 SQUARE X 47.77 2.30 2.57792165
7 50X25 SQUARE X 47.77 2.60 2.8949453
8 50X25 SQUARE X 47.77 2.90 3.20753195
9 50X25 SQUARE X 47.77 3.30 3.61741215
10 50X25 SQUARE X 47.77 3.60 3.9196458
11 50X25 SQUARE X 47.77 3.90

1 60X40 SQUARE X 63.65 1.40 2.1482475
2 60X40 SQUARE X 63.65 1.60 2.447252
3 60X40 SQUARE X 63.65 1.80 2.7442845
4 60X40 SQUARE X 63.65 2.00 3.039345
5 60X40 SQUARE X 63.65 2.30 3.47823825
6 60X40 SQUARE X 63.65 2.60 3.9126945
7 60X40 SQUARE X 63.65 2.90 4.34271375
8 60X40 SQUARE X 63.65 3.30 4.90917075
9 60X40 SQUARE X 63.65 3.60 5.328837
10 60X40 SQUARE X 63.65 3.90

1 60X60 SQUARE X 76.2 1.40 2.581348
2 60X60 SQUARE X 76.2 1.60 2.942224
3 60X60 SQUARE X 76.2 1.80 3.301128
4 60X60 SQUARE X 76.2 2.00 3.65806
5 60X60 SQUARE X 76.2 2.30 4.1897605
6 60X60 SQUARE X 76.2 2.90 5.2398505

1 80X40 RECTANGULAR X 76.2 1.40 2.581348
2 80X40 RECTANGULAR X 76.2 1.60 2.942224
3 80X40 RECTANGULAR X 76.2 1.80 3.301128
4 80X40 RECTANGULAR X 76.2 2.00 3.65806
5 80X40 RECTANGULAR X 76.2 2.30 4.1897605
6 80X40 RECTANGULAR X 76.2 2.60 4.717024
7 80X40 RECTANGULAR X 76.2 2.90 5.2398505

1 32X20 RECTANGULAR X 33.3 1.6 1.250248

1 38X38 RECTANGULAR X 48.3 2.30 2.60797
2 38X38 RECTANGULAR X 48.3 2.90 3.245419

1 66X33 RECTANGULAR X 63.05 1.40 2.1275415
2 66X33 RECTANGULAR X 63.05 1.60 2.423588
3 66X33 RECTANGULAR X 63.05 1.80 2.7176625
4 66X33 RECTANGULAR X 63.05 2.00 3.009765
5 66X33 RECTANGULAR X 63.05 2.30 3.44422125
6 66X33 RECTANGULAR X 63.05 2.60 3.8742405
7 66X33 RECTANGULAR X 63.05 2.90 4.29982275
