Paper Roll Upender | roll tilter | Tipper

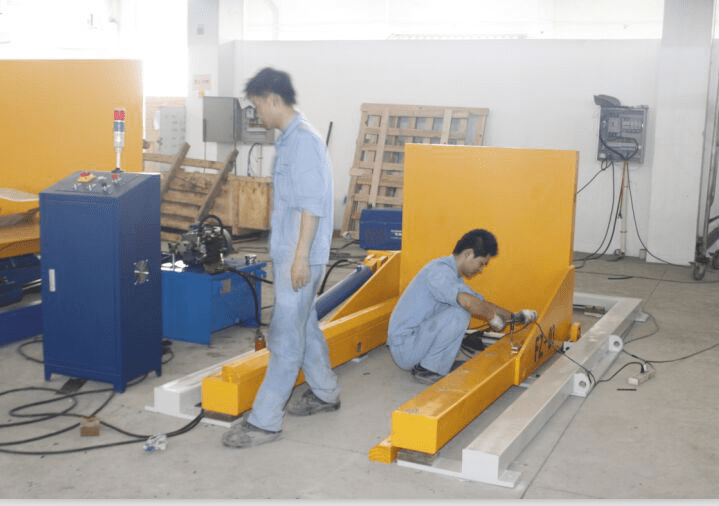

Roll upender | Roll tilter

Technical parameter：

Machine Model	FZ-H02
Line voltage	220V, 60Hz, 3phases
Power consumption	2.0kW
Load object	plastic film roll
Load length	Max. 2400mm
Load outer diameter (OD)	1000mm
Load weight	1600kg
Tilting angle	90°
Capacity	2000kg
Inverter	Delta
Noise	<78db


MACHINE FEATURES<>

• The roll upender is very sturdy, the design structure is heavy, and the service life cycle is long.

• Able to adjust its turning speed

• The machine has automatic settings and can automatically stop operation.

• The roll upender can run without vibration and can maintain smooth and accurate operation.

• Two way back pressure technical

• The dumping and turning of the machine are driven by hydraulic cylinders.

• With an independently designed electrical panel control, it can make the operation of the machine easier and safer.


MACHINE ENVIRONMENT

• The average annual effective length of work is 7200h.

• The working air temperature is between -50℃ and +40℃

• The maximum dust content is only 3mg/cum



SUPPLY LIST<>


NO.	Items	Quantity
1	Tilter Structure	1 set for each
2	Hydraulic working station	1 set for each
3	Spare parts, manual	1 set for each
