Bearing packing machine solutions

The different version bearing packing machine designed for different bearing size and different bearing handling in packing process.Horizontal type bearing handling and vertical bearing wrapper...

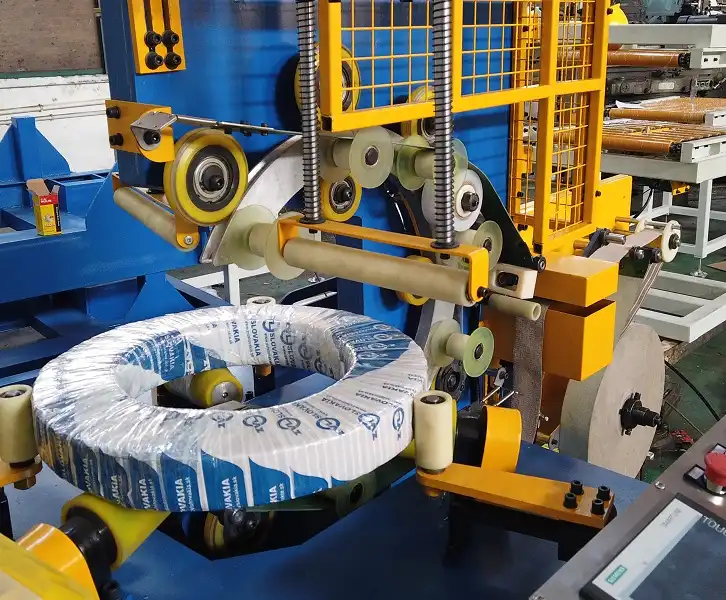

Bearing packing machine FPB-100

Bearing packing machine FPB-100


Description:
This bearing wrapping machine is designed  mainly for wrapping the big size bearing and axletree packaging requirement. It's strenght can be shown on improving the packing quality and high packing speed for saving labor cost and packing cost.

Features of bearing packing machine:

Control:
l 1. The machine can be connected with production line for automatic bearing wrapping.
l 2. PLC & HMI are adopted for automatic operation.
l 3. Automatic centralized positioning for bearing packaging
l 4. Sensors have been adopted for checking position of the wrapping position.
l 5. Automatic conveyors for loading and unloading.
l 6. Manual and automatic bearing packing models are optional.
l 7. Indicator alarms automatically when trouble occurs. Trouble can be shown automatically.
l 8. Soft stop and start protection.
l 9. Ring reset function.
l 10. Ring jog.


Operation for bearing packing machine:
l1. The converters adopted to adjust the overlap of the packing tape according to requirement.
l 2. Speed of the ring and rollers are adjustable by converters.
l 3. Simple operation by imputing OD. ID. width & corrected parameter of coiled metal. Other parameters will be set automatically.
l 4. Guardrails, soft starts and stop for safety operation.
l 5. It can be connected with production line for automatic bearing packing.
l 6. Packaging tension is adjustable.
l 7. Special braker for the tape release device to avoid material folding.
l 8. Automatic material cutting the feeding system.






Parameters:

Bearing Packing Machine FPC-200 FPC-300 FPC-400
Voltage (V/Hz) AC 380/50( or your requirement)
Power (KW) 1.5 1.8 2.5
Bearing ID(mm) 150-400 300-600 300-900
Bearing OD(mm) 250-450 700-1000 700-1200
Bearing width(mm) 10-100 20-200 50-300
Bearing Weight(Kg) 5-20 20-200 100-500
Packing material Goffered paper/PE/Stretch film/knit belt/PVC
Ring speed(r/min) 30-80 30-80 30-70
Wrapping speed 25-35sec/pcs 35-45sec/pcs 40-50sec/pce
Overlapping rate 20-80%



Bearing packing machine FPB-100

Bearing packing machine FPB-100

Bearing Packing Machine

Conveyor for bearing infeeding and out feeding; automatic positioning for bearing; paper, tape, stretch film are available for packaging; automatic material counting and cutting.

Customize Bearing Packing Solution

Feel free contact with our team for bearing wrapping machine, bearing packing machine consultation. We are providing free drawing and recommendation per your need.
